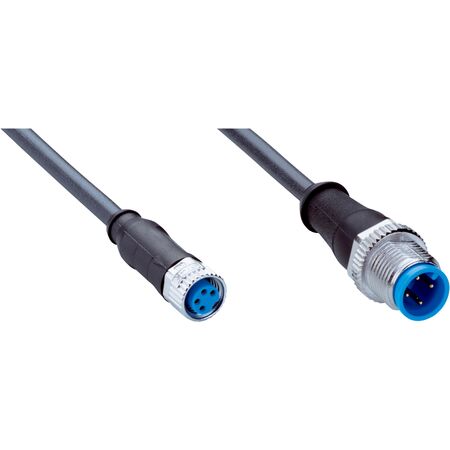

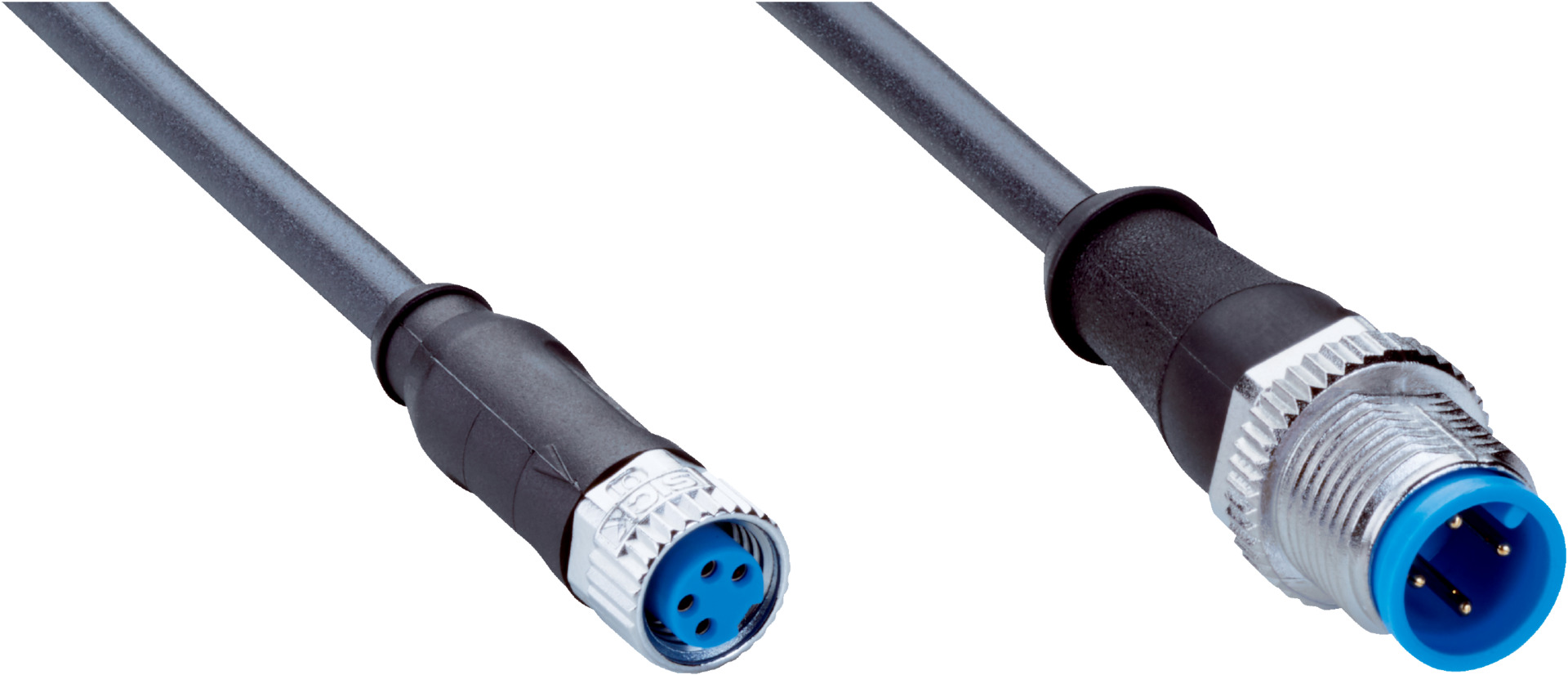

M8 to M12 Sensor Actuator Cable | 4-Pin A-Coded | Halogen-Free PUR | IP65/IP66/IP67 Rated | by SICK
The M8 to M12 Sensor Actuator Cable is designed for reliable connectivity in industrial automation and robotics. Featuring a 4-pin A-coded female connector and a male connector, this halogen-free PUR cable ensures durability and flexibility in harsh environments. With an IP65/IP66/IP67 enclosure rating, it’s perfect for applications in uncontaminated zones and areas with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Male connector, M12, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable length: 1 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 180° per 1 m
- Torsion cycles: 2,000,000
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 4-pin, straight, A-coded
- Male connector M12, 4-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable: 1 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm, conductor cross section 0.25 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use)
- High bending cycles: 10,000,000
- Nominal voltage: 300 V AC, test voltage: 2,500 V AC
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 180° per 1 m with 2,000,000 torsion cycles
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1 and IEC 60332-2-2
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of disposal or fire.
- Flame retardant materials enhance safety and reduce toxic emissions.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF8U14-010UA3M2A14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connectivity applications.
