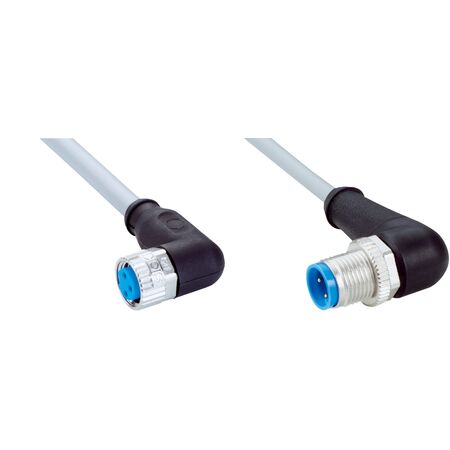

M8 to M12 Sensor Cable | 3m Length | IP65/IP66K/IP67 Rated | by SICK
The M8 to M12 Sensor Cable is designed for reliable connections in industrial automation, featuring a female M8 connector and a male M12 connector, both 3-pin and angled. With a robust IP65/IP66K/IP67 rating, this cable is perfect for environments requiring protection against dust and water, ensuring optimal performance in sensor and actuator applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 to M12 Sensor Cable | 3m Length | IP65/IP66K/IP67 Rated | by SICK
Brand: SICK
SKU: 2146394
Alternatively Known As: M8 to M12 Sensor Cable, Actuator Connector Cable, Industrial Automation Connector Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Male connector, M12, 3-pin, angled, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable length: 3 m, 3-wire, PVC jacket
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Operating temperature: Flexible use -5°C to +80°C, Stationary -30°C to +80°C, Head -25°C to +85°C
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 3-pin, angled, A-coded
- Male connector M12, 3-pin, angled, A-coded
- Screw connection locking plug
- Connector material: TPU with zinc die-cast nickel-plated locking nut
- Cable: 3 m, 3-wire PVC jacket, gray color
- Operating temperature range: -30°C to +85°C depending on position
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Current loading up to 4 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Sensor and actuator connections in industrial automation
- Use in zones with chemicals and uncontaminated zones
- Suitable for environments requiring IP65/IP66K/IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant cable enhances safety and reduces fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK YG8U13-030VA1N2A13 sensor/actuator cable connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
