Trade Discount 20%

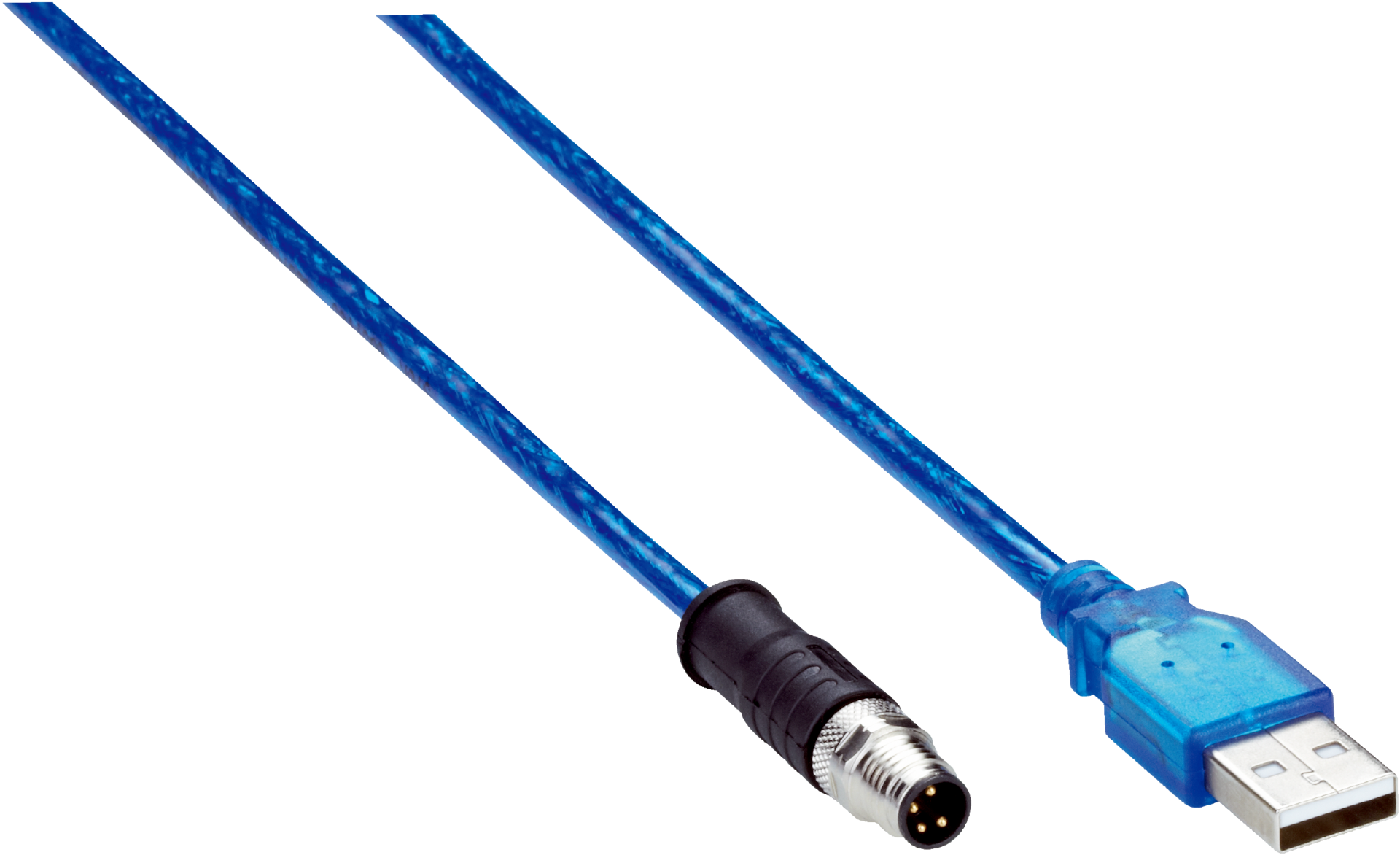

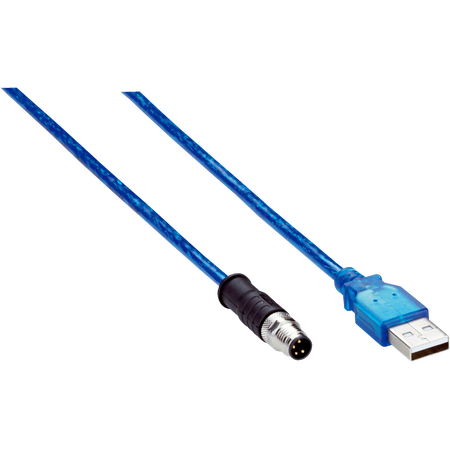

M8 to USB-A Cable | Shielded USB 2.0 | IP67 Rated | 3m Length | by SICK
The M8 to USB-A cable is designed for industrial automation and sensor connectivity, featuring a shielded USB 2.0 design for reliable data transfer. With an IP67 rating, it offers dust and water resistance, making it perfect for harsh environments. This 3-meter cable is built to withstand operating temperatures from -30°C to +90°C, ensuring durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 to USB-A cable, Industrial USB cable, Shielded USB 2.0 cable
Technical Specifications
- Connection type head A: Male connector, M8, 4-pin, straight
- Connection type head B: Male connector, USB-A, 4-pin, straight
- Connector material: TPU
- Cable: 3 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Shielding: Shielded
- Reference voltage: ≤ 30 V
- Current loading: 4 A
- Signal type: USB 2.0
- Enclosure rating: IP67
- Operating temperature: -30 °C to +90 °C
- Contamination rating: 3
- Dimensions (H x L x W): 8mm x 3000mm x 8mm
- Weight: 0.1 kg
Key Features
- Male connector, M8, 4-pin, straight on head A
- Male connector, USB-A, 4-pin, straight on head B
- Shielded cable for interference protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -30°C to +90°C
- Current loading capacity of 4 A
- Cable length of 3 meters with 4-wire PVC jacket
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation and sensor connectivity
- Data transfer between USB devices and industrial equipment
- Use in environments requiring robust and shielded cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable and shielded design reduces electronic waste by extending product lifespan
- IP67 rating ensures protection against environmental contaminants, reducing failure rates
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YM8U24-030VG3MUSA USB 2.0 M8 to USB-A Cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
