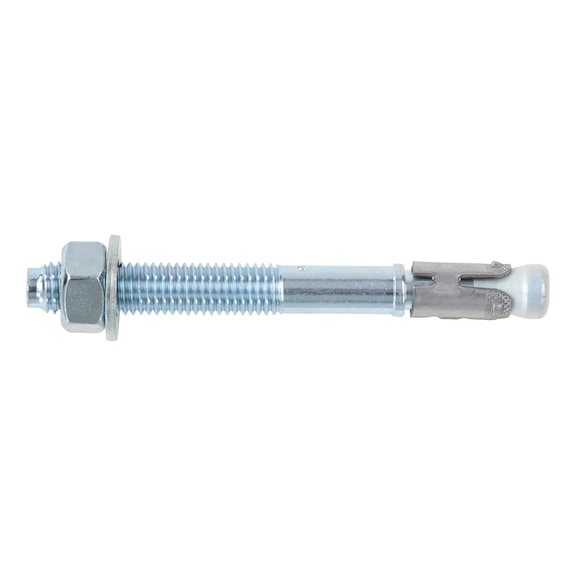

M8 Zinc Plated Concrete Anchor Bolt | High Load Capacity | Immediate Load-Bearing | @Pack of 100 | by Wurth
M8 Zinc Plated Concrete Anchor Bolt offers high load capacity and immediate load-bearing capabilities, making it ideal for heavy steel structures, fence systems, and post support brackets. Designed for quick installation, this durable anchor bolt features corrosion-resistant zinc plating, ensuring long-lasting performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M8
- Anchor length: 115 mm
- Attachment height: 50 mm
- Max. attachment height reduced: 61 mm
- Effective anchoring depth: 46 mm
- Effective anchoring depth reduced: 35 mm
- Width across flats: 13 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 60 mm
- Drill hole depth reduced: 49 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring: 20 Nm
- Through-hole in component to be connected: 9 mm
- Approval: ETA-99/0011
- Fire resistance ratings: F30, F60, F90, F120 (M8-M16) per DIN 4102-2
- Dimensions (H x L x W): 115mm x 115mm x 13mm
- Weight: 0.2 kg
Key Features
- Bolt anchor for high loads in cracked and non-cracked concrete
- Steel, zinc-plated for corrosion resistance
- Immediate load-bearing capacity with no waiting times
- Time-saving in-place installation
- Reduced effective anchorage depth
- Minimised drilling for time-saving
- Versatile applications
- Proof of Performance ETA-99/0011 for individual fixing points
- Seismic performance category C1 and C2 (M8-M20)
- Fire resistance (M8-M16): F30, F60, F90, and F120 according to DIN 4102-2
- Fire resistance ratings R30, R60, R90, and R120 included in ETA-99/0011
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer guidelines and relevant Australian standards to ensure safety and performance.
Applications

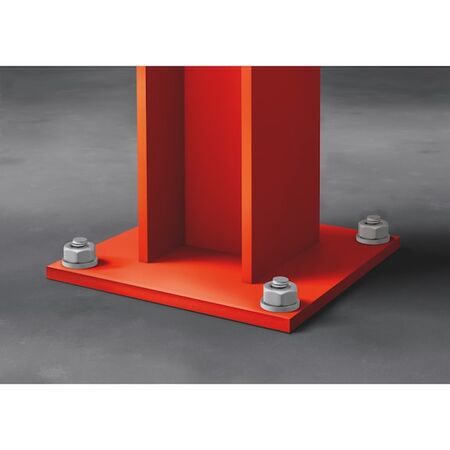

- Heavy steel structures

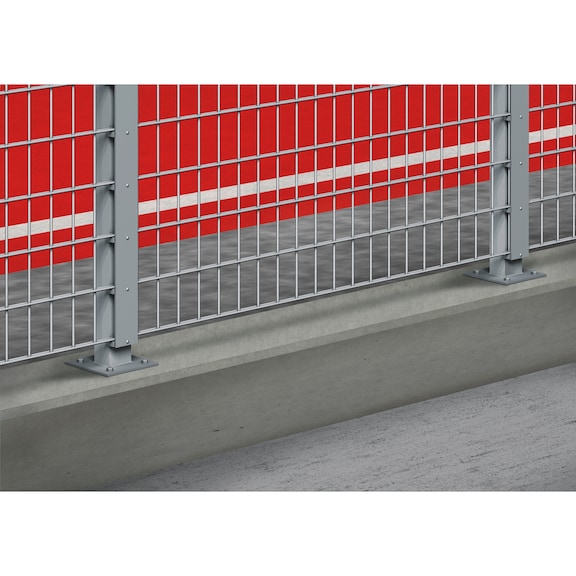

- Fence systems
- Post support brackets
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating extends product life, reducing waste
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth Fixanchor W FAZ S ANC M8x115 zinc plated steel anchor bolt is available for immediate purchase, ideal for heavy steel structures, fence systems, and post support brackets.
