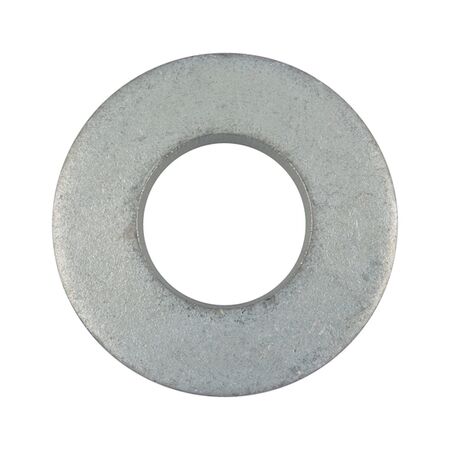

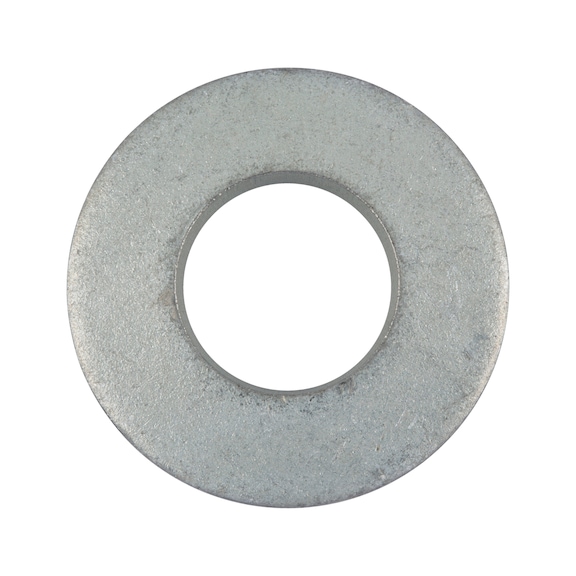

M8 Zinc Plated Spring Washer | DIN 6796 Standard | High Resiliency | Corrosion Resistant | by Wurth
The M8 Zinc Plated Spring Washer is designed for screw connections requiring high pre-tensioning force, making it ideal for mechanical fastening in industrial and automotive applications. Made from resilient spring steel and featuring a zinc plated surface for corrosion resistance, this washer ensures effective locking with its embedding locking device, providing reliability and safety in your projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Zinc Plated Spring Washer | DIN 6796 Standard | High Resiliency | Corrosion Resistant | by Wurth
Brand: Wurth
SKU: 41318
Alternatively Known As: M8 Spring Washer, Zinc Plated Lock Washer, DIN 6796 Washer, Resilient Washer
Technical Specifications
- Suitable for screw thread: M8
- Internal diameter (d1): 8.4 mm
- Outer diameter (d2): 18 mm
- Height (h1): 2.6 mm
- Thickness (s1): 2 mm
- Standards: DIN 6796
- Material: Spring steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Suitable for: Screw connections, property class 8.8 and 10.9
- Locking function: Embedding locking device
- Dimensions (H x L x W): 2.6mm x 18mm x 18mm
- Weight: 0.1 kg
Key Features
- Spring washers are co-stressed elements that maintain pre-tensioning force to counteract loosening
- Made from spring steel with high resiliency
- Zinc plated surface for corrosion resistance
- Embedding locking device provides effective locking function
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety compliance.
Applications
- Used in screw connections requiring high pre-tensioning force
- Suitable for property class 8.8 and 10.9 screw connections
- Ideal for mechanical fastening and securing elements in industrial and automotive applications
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth M8 Zinc Plated Spring Washer DIN 6796 is available for immediate purchase, ideal for industrial and mechanical fastening applications.
