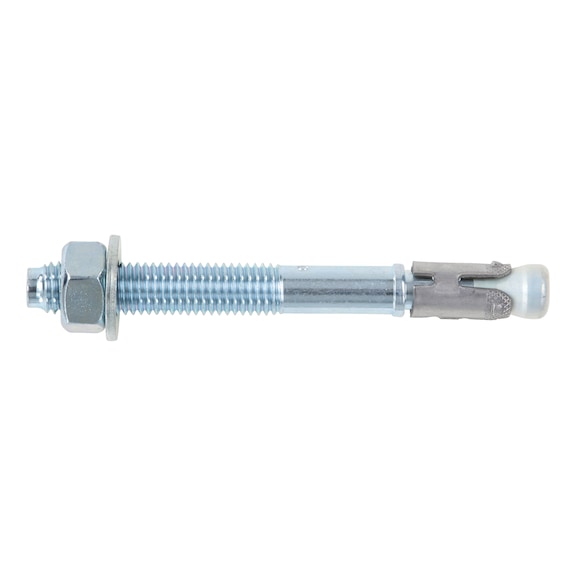

M8 Zinc Plated Steel Anchor Bolt | Heavy Load Capacity | Immediate Load-Bearing | @Pack of 100 | by Wurth
M8 Zinc Plated Steel Anchor Bolt is designed for heavy load applications, providing immediate load-bearing capacity without waiting times. Ideal for heavy steel structures, fence systems, and post support brackets, this anchor bolt features corrosion-resistant zinc plating and is compliant with ETA-99/0011 for reliable performance in cracked and non-cracked concrete.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Metric anchor diameter: M8
- Anchor length: 75 mm
- Attachment height: 10 mm
- Max. attachment height reduced: 21 mm
- Effective anchoring depth: 46 mm
- Effective anchoring depth reduced: 35 mm
- Width across flats: 13 mm
- Nominal drill-bit diameter: 8 mm
- Drill hole depth: 60 mm
- Drill hole depth reduced: 49 mm
- Material: Steel
- Surface: Zinc plated
- Torque during anchoring: 20 Nm
- Through-hole in component to be connected: 9 mm
- Approval: ETA-99/0011
- Fire resistance: R30, R60, R90, R120 per ETA-99/0011
- Dimensions (H x L x W): 10mm x 75mm x 75mm
- Weight: 0.2 kg
Key Features
- Bolt anchor for high loads in cracked and non-cracked concrete
- Steel, zinc-plated for corrosion resistance
- Immediate load-bearing capacity with no waiting times
- Time-saving in-place installation
- Reduced effective anchorage depth
- Minimised drilling for faster installation
- Versatile applications
- Proof of Performance ETA-99/0011 for cracked and uncracked concrete
- Seismic performance category C1 and C2 (M8-M20)
- Fire resistance ratings F30, F60, F90, F120 according to DIN 4102-2
Professional Installation Requirements
- Installation should be performed by qualified professionals following manufacturer guidelines and relevant safety standards.
Applications
- Heavy steel structures
- Fence systems
- Post support brackets
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable steel construction reduces need for frequent replacements
- Zinc plating provides corrosion resistance extending product life
Warranty Information
Warranty against manufacturing defects as per Wurth standard terms.
Available Now
The Wurth Fixanchor W FAZ S ANC M8X75 Zinc Plated Steel Anchor Bolt 100 PCS is available for immediate purchase, ideal for heavy steel structures, fence systems, and post support brackets.
