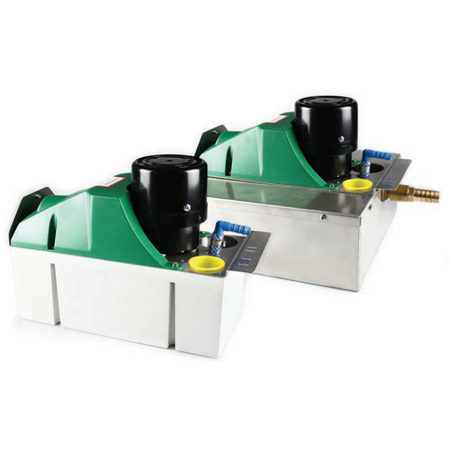

Macerator 10L | 780L/h Max Flow | Hi-Level Safety Switch | Low Maintenance Design | by Aspen Pumps
The Macerator 10L is designed for efficient condensate removal in refrigeration and supermarket applications. With a maximum flow of 780L/h and a hi-level safety switch, it ensures reliable operation while minimizing maintenance needs. Ideal for both single and multiple refrigeration units, this pump is built to handle food waste effectively, making it a perfect choice for commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Macerator 10L | 780L/h Max Flow | Hi-Level Safety Switch | Low Maintenance Design | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2307
Alternatively Known As: Condensate Pump, Refrigeration Drain Pump, Supermarket Condensate Pump
Technical Specifications
- Max flow: 780L/h at 0 head
- Max recommended head: 8.5m
- Tank capacity: 10L
- Noise level: 64 dB(A) at 1m
- Power supply: 230 VAC, 0.38A, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C / 104°F
- Inlet/outlet sizes: 40 & 55mm inlet, 10mm outlet
- Additional inlet: 3/4” in tank (10L model only)
- IP Protection: IP21
- Safety switch: 4.0A Normally closed
- Thermal protection included
- Dimensions (H x L x W): 300mm x 250mm x 200mm
- Weight: 3.5 kg
Key Features
- Internal filter blade prevents clogging
- High flow and head capacity
- Hi-level safety switch for protection
- Low maintenance design
Professional Installation Requirements
- Professional installation by a qualified technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Single and multiple refrigeration units
- Handling food waste that may pass through the pump
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient water removal reduces risk of water damage and waste
- Low power consumption with 230 VAC, 0.38A operation
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Pumps Macerator 10L is available now for immediate purchase. Ideal for refrigeration and supermarket applications requiring reliable condensate removal.
