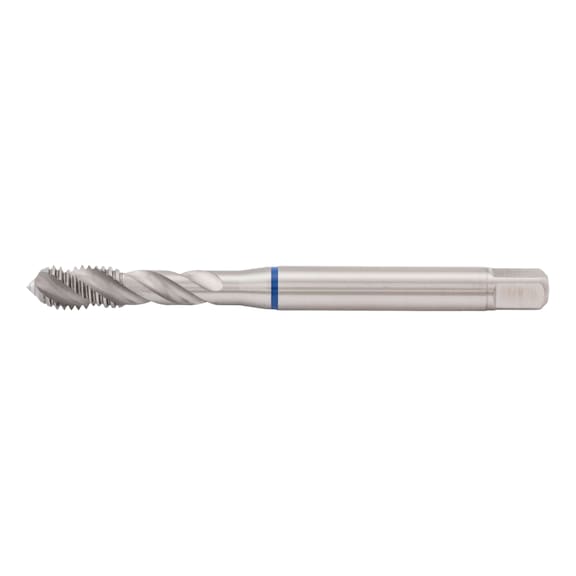

Machine Tap M14 | High-Speed Cobalt Steel | ZEBRA-Premium Quality | by Wurth
The Machine Tap M14 is designed for precision machining, featuring a metric thread type with a 2 mm pitch and crafted from durable high-speed cobalt steel (HSCo). Ideal for general machining of non-alloyed steels up to 850 N/mm² tensile strength, this tap ensures high performance and precision, making it perfect for use in milling/drill centers and pedestal drilling machines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M14 | High-Speed Cobalt Steel | ZEBRA-Premium Quality | by Wurth
Brand: Wurth
SKU: 653014
Alternatively Known As: Machine Tap M14, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M14
- Material to be processed: Steel (general structural and non-alloyed tempering steels)
- Hole type: Blind hole up to 2.5x diameter depth
- Suitable machine types: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Pitch: 2 mm
- Length: 110 mm
- Shank diameter: 11.0 mm
- Size of square drive: 9.0 mm
- DIN standard: 376
- Cutting material: High-speed cobalt steel (HSCo)
- Surface finish: Plain
- Form: C
- Core hole diameter: 12.0 mm
- Twist angle: 40° (right-hand)
- Shank style: Cylindrical with square drive
- Tolerance: ISO 2 (6H)
- Suitable for tensile strength up to: 850 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 1 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Dimensions (H x L x W): 14mm x 110mm x 14mm
- Weight: 0.1 kg
Key Features
- Metric thread type M14 with 2 mm pitch
- High-speed cobalt steel (HSCo) cutting material for durability
- Cylindrical shank with square drive for secure fitting
- ZEBRA-Premium quality ensuring high precision and performance
- Plain surface finish with form C geometry
- ISO 2 (6H) tolerance for screw taps
- Optimized twist angle of 40° (right-hand) for efficient chip removal
Professional Installation Requirements
- Professional use by trained machinists or operators recommended for optimal performance and safety.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for milling/drill centers and pedestal drilling machines
- Thread cutting in blind holes up to 2.5x diameter depth
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSCo material reduces frequency of tool replacement, minimizing waste
- Efficient chip formation reduces material waste during machining
Warranty Information
Wurth standard product warranty against manufacturing defects.
Available Now
The Wurth Blue Ring Machine Tap M14 is available for immediate purchase, ideal for precision machining in industrial and workshop settings.
