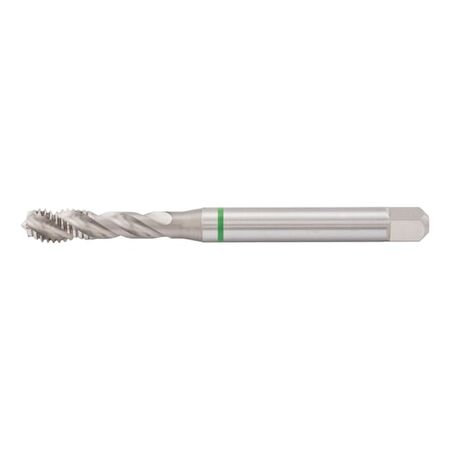

Machine Tap M14 | HSCo Cutting Material | 2 mm Pitch | Blind Hole Capability | by Wurth
The Machine Tap M14 is designed for precision machining, featuring a 2 mm pitch and high-speed cobalt (HSCo) cutting material for enhanced durability. Ideal for processing stainless steels and conventional steel materials, this tap is perfect for use in milling and drilling machines, ensuring reliable performance in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M14 | HSCo Cutting Material | 2 mm Pitch | Blind Hole Capability | by Wurth
Brand: Wurth
SKU: 655014
Alternatively Known As: Machine Tap M14, Metric Thread Tap, HSCo Tap, Stainless Steel Tap, Thread Cutter
Technical Specifications
- Thread type: Metric thread M14
- Material to be processed: Steel, Stainless steel
- Hole type: Blind hole up to 2.5x diameter
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Pitch: 2 mm
- Length: 110 mm
- Shank diameter: 11.0 mm
- Size of square: 9.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 12.0 mm
- Twist angle: 40° (right)
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 1000 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Material sub-group: Stainless steels (sulphurated, austenitic, martensitic)
- Dimensions (H x L x W): 110mm x 11mm x 11mm
- Weight: 0.3 kg
Key Features
- Metric thread type M14 with 2 mm pitch
- Suitable for blind holes up to 2.5x diameter
- High-speed cobalt (HSCo) cutting material for durability
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 376 standard
- ISO 2 (6H) tolerance for screw taps
- ZEBRA-Premium quality
- Twist angle of 40° (right-hand)
- Core hole diameter 12.0 mm
- Length 110 mm, shank diameter 11.0 mm, square size 9.0 mm
Professional Installation Requirements
- Professional use recommended; should be operated by trained machinists or technicians familiar with machine tapping processes.
Applications
- Machining alloyed and high-alloyed steels including stainless steels
- Processing rust-resistant and acid-resistant steels
- Suitable for conventional steel materials up to 850 N/mm² strength
- Use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSCo material reduces frequency of tool replacement, minimizing waste
- Precision manufacturing reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Machine Tap M14 is available for immediate purchase, ideal for precision machining in industrial and manufacturing settings.
