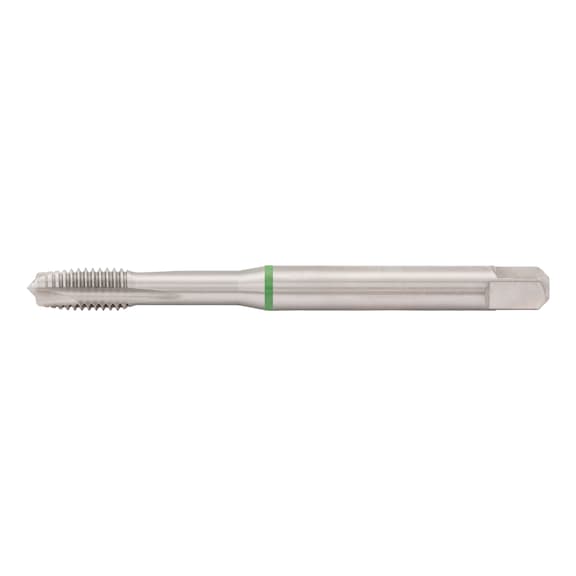

Machine Tap M14 | HSCo Cutting Material | Cylindrical Shank | DIN 376 Compliant | by Wurth
The Machine Tap M14 is designed for precision machining of steel and stainless steel, featuring a 2 mm pitch and high-speed cobalt (HSCo) cutting material for enhanced durability. Ideal for trained machinists, this tap ensures secure fitting with its cylindrical shank and square drive, making it perfect for use in milling and drilling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M14 | HSCo Cutting Material | Cylindrical Shank | DIN 376 Compliant | by Wurth
Brand: Wurth
SKU: 65514
Alternatively Known As: Machine Tap M14, Metric Thread Cutter, HSCo Thread Tap, Milling Tap, Drilling Machine Tap
Technical Specifications
- Thread type: Metric thread M14
- Pitch: 2 mm
- Material to be processed: Steel, Stainless steel
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 110 mm
- Shank diameter: 11.0 mm
- Size of square: 9.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: B
- Core hole diameter: 12.0 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 1000 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Material sub-groups: Stainless steels (sulphurated, austenitic, martensitic)
- Dimensions (H x L x W): 14mm x 110mm x 14mm
- Weight: 0.2 kg
Key Features
- Suitable for metric thread M14 with 2 mm pitch
- High-speed cobalt (HSCo) cutting material for durability
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 376 standard
- ISO 2 (6H) tolerance for screw taps
- Plain surface finish
- Form B design
- Core hole diameter of 12.0 mm
- Suitable for tensile strength up to 1000 N/mm²
Professional Installation Requirements
- Use by trained machinists or operators with experience in machine tapping is recommended to ensure safety and precision.
Applications
- Machining alloyed and high-alloyed steels including stainless, rust-resistant, and acid-resistant steels
- Processing conventional steel materials up to 850 N/mm² strength
- Use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSCo material reduces frequency of tool replacement, minimizing waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Machine Tap M14 is available for immediate purchase, ideal for professional machining applications involving steel and stainless steel materials.
