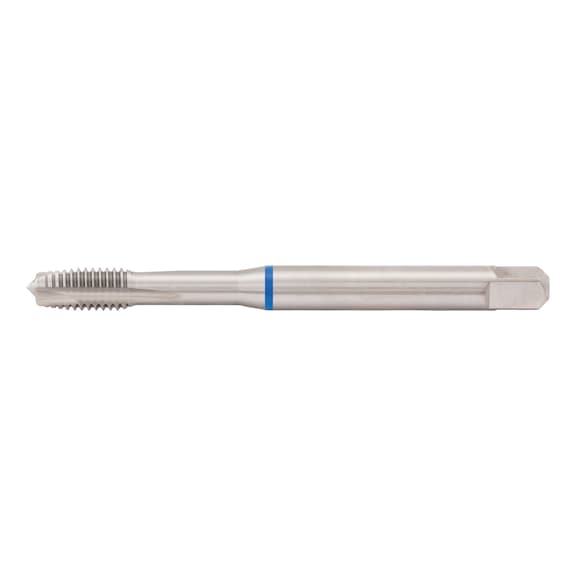

Machine Tap M16 | HSCo Cutting Material | 2 mm Pitch | Cylindrical Shank | by Wurth
The Machine Tap M16 is designed for precision machining in steel, featuring a 2 mm pitch and high-speed cobalt steel (HSCo) cutting material. Ideal for trained machinists, this tap ensures optimal performance in milling and drilling applications, providing reliable results for non-alloyed steels up to 850 N/mm² tensile strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M16 | HSCo Cutting Material | 2 mm Pitch | Cylindrical Shank | by Wurth
Brand: Wurth
SKU: 65316
Alternatively Known As: Machine Tap M16, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M16
- Pitch: 2 mm
- Material to be processed: Steel (general structural and non-alloyed tempering steels)
- Hole type: Clearance hole approximately 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 110 mm
- Shank diameter: 12.0 mm
- Size of square: 9.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: B
- Core hole diameter: 14.0 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 850 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 1 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Dimensions (H x L x W): 110mm x 110mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric thread type M16 with 2 mm pitch
- High-speed cobalt steel (HSCo) cutting material
- Cylindrical shank with square drive for secure fitting
- Plain surface finish
- Complies with DIN 376 standard
- ISO 2 (6H) tolerance for screw taps
- Designed for clearance holes approximately 3xD
- Form B type tap
- Optimized for cutting long chips in steel materials
Professional Installation Requirements
- Professional use by trained machinists or operators recommended for optimal performance and safety.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSCo material extends tool life reducing waste
- Precision manufacturing reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth Blue Ring Machine Tap M16 is available for immediate purchase, ideal for machining applications in steel materials.
