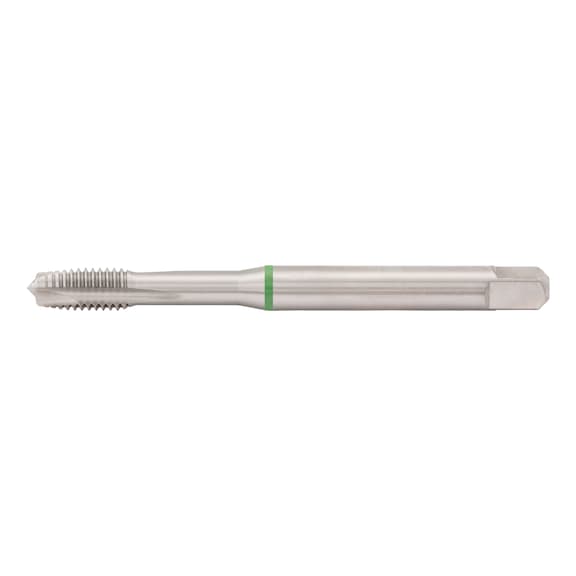

Machine Tap M16 | HSCo Cutting Material | 2 mm Pitch | DIN 376 Compliant | by Wurth
The Machine Tap M16 is designed for precision machining with a 2 mm pitch and made from durable HSCo cutting material. Ideal for professionals working with alloyed and high-alloyed steels, including stainless steels, this tap ensures optimal performance and longevity. Its cylindrical shank with square drive provides a secure fit, making it perfect for use in milling and drilling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M16 | HSCo Cutting Material | 2 mm Pitch | DIN 376 Compliant | by Wurth
Brand: Wurth
SKU: 65516
Alternatively Known As: Machine Tap M16, Metric Thread Cutter, Steel Thread Tap, Stainless Steel Tap
Technical Specifications
- Thread type: Metric thread M16
- Pitch: 2 mm
- Length: 110 mm
- Shank diameter: 12.0 mm
- Size of square: 9.0 mm
- DIN standard: 376
- Cutting material: HSCo
- Surface finish: Plain
- Form: B
- Core hole diameter: 14.0 mm
- Shank style: Cylindrical with square drive
- Tolerance: ISO 2 (6H)
- Suitable for tensile strength up to 1000 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge: 4 of 4 points
- Versatility rating: 2 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Dimensions (H x L x W): 110mm x 110mm x 12mm
- Weight: 0.1 kg
Key Features
- Metric thread type M16 with 2 mm pitch
- Made from HSCo cutting material for durability
- Suitable for tensile strength up to 1000 N/mm²
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 376 standard
- ISO 2 (6H) tolerance for screw taps
- Plain surface finish
- Form B design
- Core hole diameter 14.0 mm
Professional Installation Requirements
- Recommended to be used by trained machinists or professionals experienced with milling and drilling machines for optimal performance and safety.
Applications
- Machining alloyed and high-alloyed steels including stainless steels
- Processing rust-resistant and acid-resistant steels
- Suitable for conventional steel materials up to 850 N/mm² strength
- Use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSCo material reduces frequency of tool replacement, minimizing waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
The Wurth Low-Priced Machine Tap M16 is available for immediate purchase, ideal for machining applications involving steel and stainless steel materials.
