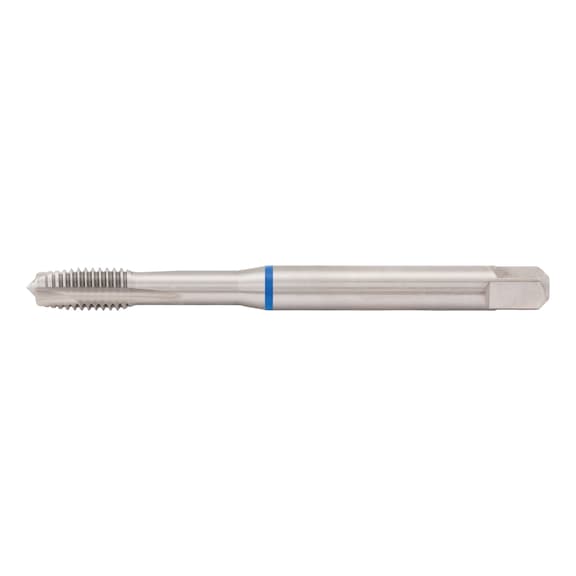

Machine Tap M2 | High-Speed Cobalt Steel | 0.4 mm Pitch | DIN 371 Compliant | by Wurth
The Machine Tap M2 is designed for precision machining of non-alloyed steels, featuring a 0.4 mm pitch and crafted from high-speed cobalt steel (HSCo). Ideal for use in milling and drilling applications, this tap ensures secure fitting with its cylindrical shank and square drive, making it perfect for trained machinists and professionals seeking reliable performance in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M2 | High-Speed Cobalt Steel | 0.4 mm Pitch | DIN 371 Compliant | by Wurth
Brand: Wurth
SKU: 6532
Alternatively Known As: Machine Tap M2, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M2
- Material to be processed: Steel (general structural and non-alloyed tempering steels)
- Hole type: Clearance hole approximately 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Pitch: 0.4 mm
- Length: 45 mm
- Shank diameter: 2.8 mm
- Size of square: 2.1 mm
- DIN: 371
- Cutting material: HSCo (High-Speed Cobalt Steel)
- Surface: Plain
- Form: B
- Core hole diameter: 1.6 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 850 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 1 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Dimensions (H x L x W): 45mm x 45mm x 2.8mm
- Weight: 0.1 kg
Key Features
- Metric thread type M2 with 0.4 mm pitch
- High-speed cobalt steel (HSCo) cutting material
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 371 standard
- ISO 2 (6H) tolerance for screw taps
- Plain surface finish
- Form B design
- Core hole diameter 1.6 mm
- Suitable for clearance holes approximately 3xD
Professional Installation Requirements
- Use by trained machinists or professionals with appropriate machine tools is recommended to ensure safety and precision.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation) for electrical safety in machining environments
Environmental Benefits
- Durable cutting material reduces tool replacement frequency, minimizing waste
- Precision machining reduces material waste during manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth Blue Ring Machine Tap M2 is available for immediate purchase, ideal for precision machining in industrial and manufacturing settings.
