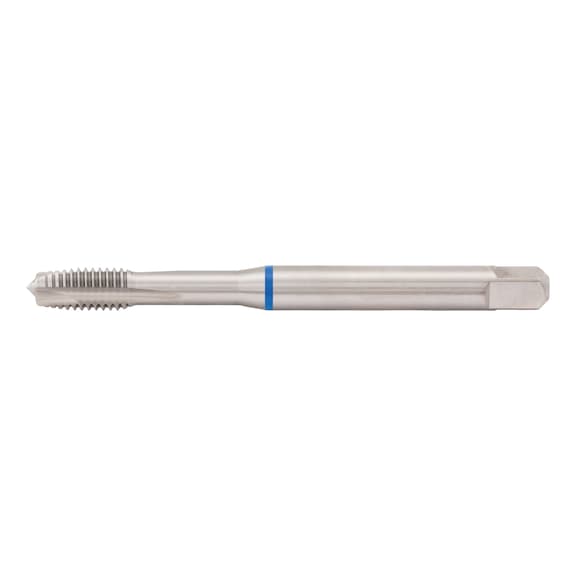

Machine Tap M20 | High-Speed Cobalt Steel | DIN 376 Compliant | Cylindrical Shank | by Wurth
The Machine Tap M20 is designed for precision threading in steel materials, featuring a metric thread type with a 2.5 mm pitch and made from durable high-speed cobalt steel (HSCo). Ideal for use in milling and drilling applications, this tap ensures high performance and compliance with DIN 376 standards, making it perfect for trained machinists and operators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M20 | High-Speed Cobalt Steel | DIN 376 Compliant | Cylindrical Shank | by Wurth
Brand: Wurth
SKU: 65320
Alternatively Known As: Machine Tap M20, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M20
- Pitch: 2.5 mm
- Material to be processed: Steel (general structural and non-alloyed tempering steels)
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 140 mm
- Shank diameter: 16.0 mm
- Size of square: 12.0 mm
- DIN: 376
- Cutting material: HSCo (High-Speed Cobalt Steel)
- Surface: Plain
- Form: B
- Core hole diameter: 17.5 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 850 N/mm²
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 1 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 2 of 4 points
- Dimensions (H x L x W): 140mm x 140mm x 20mm
- Weight: 0.3 kg
Key Features
- Metric thread type M20 with 2.5 mm pitch
- High-speed cobalt steel (HSCo) cutting material for durability
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 376 standard
- ISO 2 (6H) tolerance for screw taps ensuring precision
- Plain surface finish with form B design
Professional Installation Requirements
- Use by trained machinists or operators with appropriate machine tools; ensure correct machine setup and safety procedures.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Durable cutting material reduces tool replacement frequency, minimizing waste
- Precision manufacturing reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth Blue Ring Machine Tap M20 is available for immediate purchase, ideal for machining applications in steel materials requiring precision threading.
