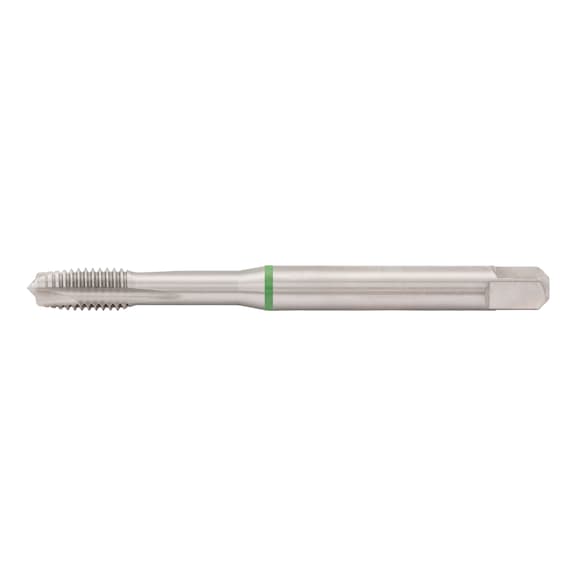

Machine Tap M20 | HSCo Cutting Material | Cylindrical Shank | DIN 376 Compliant | by Wurth
The Machine Tap M20 is designed for precision metric thread cutting with a 2.5 mm pitch, ideal for machining alloyed and stainless steels. Made from durable HSCo cutting material, it features a cylindrical shank with a square drive for secure fitting, ensuring high performance in milling and drilling applications. Perfect for trained machinists, this tap complies with DIN 376 standards and is suitable for tensile strengths up to 1000 N/mm².
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M20 | HSCo Cutting Material | Cylindrical Shank | DIN 376 Compliant | by Wurth
Brand: Wurth
SKU: 65520
Alternatively Known As: Machine Tap M20, Metric Thread Cutter, HSCo Thread Tap, Milling Machine Tap
Technical Specifications
- Thread type: Metric thread M20 x 2.5 mm pitch
- Material to be processed: Steel, Stainless steel (including sulphurated, austenitic, martensitic types)
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 140 mm
- Shank diameter: 16.0 mm
- Size of square: 12.0 mm
- DIN: 376
- Cutting material: HSCo
- Surface: Plain
- Form: B
- Core hole diameter: 17.5 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 1000 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 2 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Dimensions (H x L x W): n/a mm x 140mm x n/a mm
- Weight: 0.3 kg
Key Features
- Designed for metric thread cutting (M20 x 2.5 mm pitch)
- Made from HSCo cutting material for durability
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 376 standard
- ISO 2 (6H) tolerance for screw taps
- Suitable for tensile strength up to 1000 N/mm²
- Plain surface finish
- Form B thread profile
Professional Installation Requirements
- Use by trained machinists or operators with appropriate machine tools is recommended to ensure safety and precision.
Applications
- Machining alloyed and high-alloyed steels including stainless, rust-resistant, and acid-resistant steels
- Processing conventional steel materials up to 850 N/mm² strength
- Suitable for use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable cutting material reduces tool replacement frequency, minimizing waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Low-Priced Machine Tap M20 is available for immediate purchase, ideal for machining applications involving alloyed and stainless steels.
