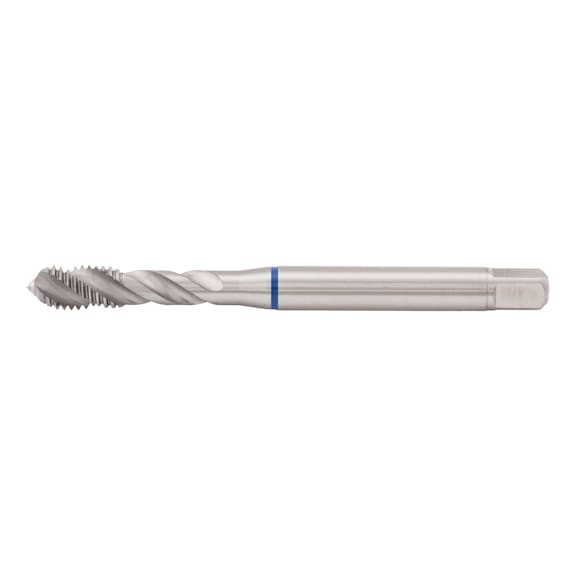

Machine Tap M24 | Blue Ring Tap | HSCo Cutting Material | ZEBRA-Premium Quality | by Wurth
The Machine Tap M24 is designed for precision thread cutting in general structural and non-alloyed tempering steels. With a 3 mm pitch and high-speed cobalt (HSCo) cutting material, this blue ring tap ensures durability and performance, making it ideal for trained machinists using milling and drilling machines. Its ISO 2 (6H) tolerance guarantees precision in blind hole applications up to 2.5 times the diameter depth.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M24 | Blue Ring Tap | HSCo Cutting Material | ZEBRA-Premium Quality | by Wurth
Brand: Wurth
SKU: 653024
Alternatively Known As: Machine Tap M24, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M24
- Material to be processed: Steel (general structural and non-alloyed tempering steels)
- Hole type: Blind hole up to 2.5x diameter depth
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Pitch: 3 mm
- Length: 160 mm
- Shank diameter: 18.0 mm
- Size of square: 14.5 mm
- DIN standard: 376
- Cutting material: HSCo (High-Speed Cobalt)
- Surface finish: Plain
- Form: C
- Core hole diameter: 21.0 mm
- Twist angle: 40° (right)
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 850 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge rating: 4 of 4 points
- Versatility rating: 1 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Dimensions (H x L x W): 160mm x 160mm x 18mm
- Weight: 0.3 kg
Key Features
- Blue ring machine tap designed for long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Metric thread type M24 with 3 mm pitch
- High-speed cobalt (HSCo) cutting material for durability
- Cylindrical shank with square drive for secure fitting
- ISO 2 (6H) tolerance for screw taps ensuring precision
- Suitable for blind holes up to 2.5x diameter depth
- ZEBRA-Premium quality for reliable performance
Professional Installation Requirements
- Use by trained machinists or operators with appropriate machine tools; follow safety and operational guidelines for machining equipment.
Applications
- Machining: Thread cutting in general structural and non-alloyed tempering steels
- Suitable for use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable cutting material reduces tool replacement frequency, minimizing waste
- Precision manufacturing reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
The Wurth Blue Ring Machine Tap M24 is available for immediate purchase, ideal for precision thread cutting in steel machining applications.
