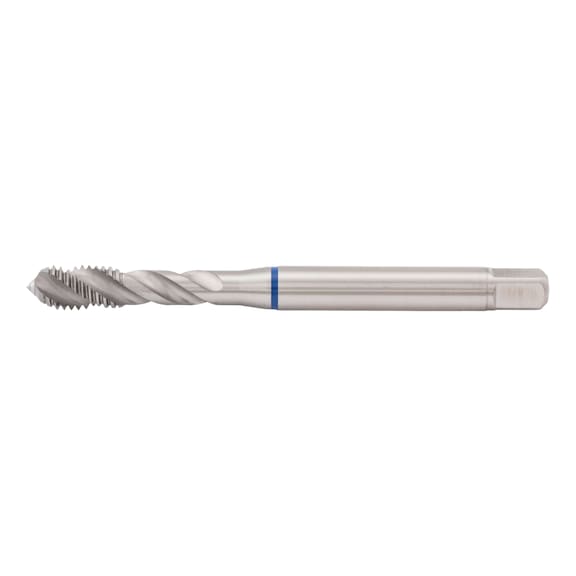

Machine Tap M27 | 3 mm Pitch | High-Speed Cobalt Steel | DIN 376 Compliant | by Wurth
The Machine Tap M27 is designed for precision threading in steel materials, featuring a 3 mm pitch and crafted from high-speed cobalt steel for enhanced durability. Ideal for trained machinists, this tap is perfect for general machining applications, ensuring reliable performance in blind holes up to 2.5 times the diameter depth.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M27 | 3 mm Pitch | High-Speed Cobalt Steel | DIN 376 Compliant | by Wurth
Brand: Wurth
SKU: 653027
Alternatively Known As: Machine Tap M27, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M27
- Pitch: 3 mm
- Material to be processed: Steel up to 850 N/mm² tensile strength
- Hole type: Blind hole up to 2.5x diameter depth
- Suitable machine types: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 160 mm
- Shank diameter: 20.0 mm
- Size of square drive: 16.0 mm
- DIN standard: 376
- Cutting material: High-speed cobalt steel (HSCo)
- Surface finish: Plain
- Form: C
- Core hole diameter: 24.0 mm
- Shank style: Cylindrical with square drive
- Tolerance: ISO 2 (6H)
- Service life rating: 2 of 4 points
- Trueness to gauge: 4 of 4 points
- Versatility rating: 1 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Dimensions (H x L x W): 160mm x 160mm x 20mm
- Weight: 0.5 kg
Key Features
- Metric thread type M27 with 3 mm pitch
- High-speed cobalt steel (HSCo) cutting material for durability
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 376 standard
- ISO 2 (6H) tolerance for screw taps ensuring precision
- Plain surface finish
- Form C design for general purpose threading
Professional Installation Requirements
- Use by trained machinists or professionals with appropriate machine tools is recommended to ensure safety and precision.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for use in milling/drill centers and pedestal drilling machines
- Thread cutting in blind holes up to 2.5x diameter depth
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable cutting material reduces tool replacement frequency, minimizing waste
- Precision threading reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth Blue Ring Machine Tap M27 x 3mm is available for immediate purchase, ideal for machining applications in steel materials.
