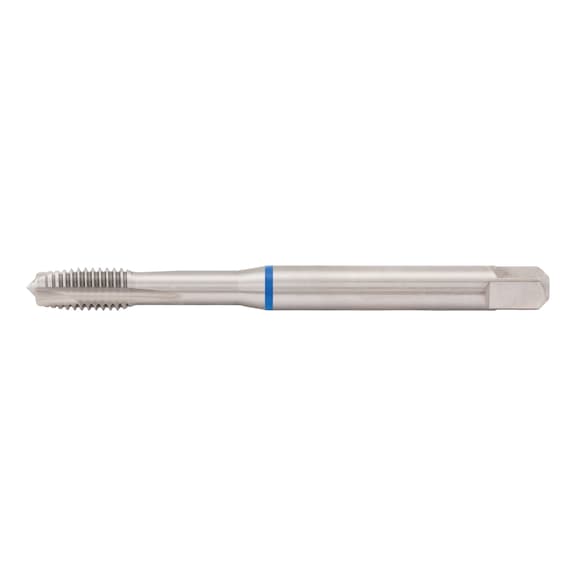

Machine Tap M3.5 | High-Speed Cobalt Steel | DIN 371 Compliant | Plain Surface Finish | by Wurth
The Machine Tap M3.5 is designed for precision machining with a metric thread type and a 0.6 mm pitch, making it ideal for general machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength. Crafted from high-speed cobalt steel (HSCo) and featuring a cylindrical shank with square drive, this tap ensures secure fitting and compliance with DIN 371 standards, perfect for use in milling/drill centers and pedestal drilling machines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M3.5 | High-Speed Cobalt Steel | DIN 371 Compliant | Plain Surface Finish | by Wurth
Brand: Wurth
SKU: 65335
Alternatively Known As: Machine Tap M3.5, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M3.5
- Pitch: 0.6 mm
- Material to be processed: Steel up to 850 N/mm² tensile strength
- Hole type: Clearance hole approximately 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 56 mm
- Shank diameter: 4.0 mm
- Size of square: 3.0 mm
- DIN: 371
- Cutting material: HSCo (High-Speed Cobalt Steel)
- Surface: Plain
- Form: B
- Core hole diameter: 2.9 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Service life rating: 2 of 4 points
- Trueness to gauge: 4 of 4 points
- Versatility: 1 of 4 points
- Cutting behaviour: 3 of 4 points
- Chip formation: 2 of 4 points
- Dimensions (H x L x W): 4mm x 56mm x 4mm
- Weight: 0.1 kg
Key Features
- Metric thread type M3.5 with 0.6 mm pitch
- High-speed cobalt steel (HSCo) cutting material
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 371 standard
- Plain surface finish
- ISO 2 (6H) tolerance for screw taps
- Designed for clearance holes approximately 3xD
Professional Installation Requirements
- Professional use recommended; installation and operation by trained machinists or technicians for optimal performance and safety.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces frequency of replacement, minimizing waste
- High precision reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth Blue Ring Machine Tap M3.5 is available for immediate purchase, ideal for precision machining in industrial and workshop settings.
