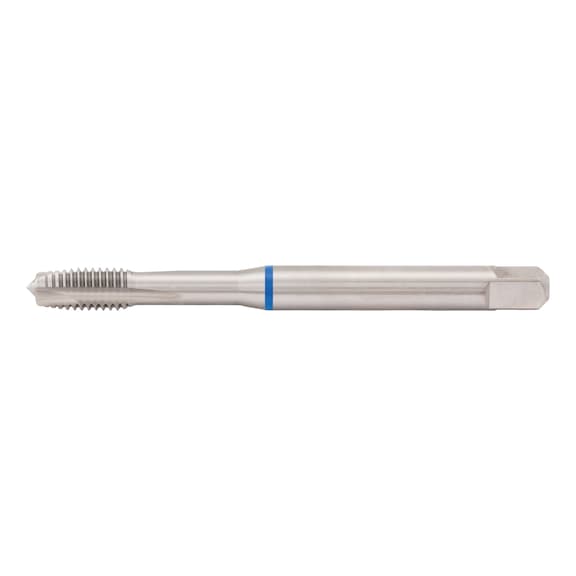

Machine Tap M3 | HSCo Cutting Material | 0.5 mm Pitch | DIN 371 Compliant | by Wurth
The Machine Tap M3 is designed for precision machining of long-chipping, non-alloyed steels with a tensile strength of up to 850 N/mm². Made from durable HSCo cutting material, this tap features a cylindrical shank with square drive for secure fitting and complies with DIN 371 standards. Ideal for use in milling/drill centers and pedestal drilling machines, it ensures optimal performance and longevity in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M3 | HSCo Cutting Material | 0.5 mm Pitch | DIN 371 Compliant | by Wurth
Brand: Wurth
SKU: 6533
Alternatively Known As: Machine Tap M3, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M3
- Pitch: 0.5 mm
- Material to be processed: Steel (general structural and non-alloyed tempering steels)
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 56 mm
- Shank diameter: 3.5 mm
- Size of square: 2.7 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: B
- Core hole diameter: 2.5 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 850 N/mm²
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 1 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 2 of 4 points
- Dimensions (H x L x W): 3.5mm x 56mm x 3.5mm
- Weight: 0.1 kg
Key Features
- Metric thread type M3 with 0.5 mm pitch
- Made from HSCo cutting material for durability
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 371 standard
- ISO 2 (6H) tolerance for screw taps
- Plain surface finish
- Form B design
- Core hole diameter of 2.5 mm
- Suitable for tensile strength up to 850 N/mm²
- Quality grade: ZEBRA-Premium
Professional Installation Requirements
- Installation and use by trained machinists or professionals with appropriate machine tools is recommended for safety and optimal performance.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable cutting material reduces tool replacement frequency, minimizing waste
- Precision manufacturing reduces material waste during machining
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Blue Ring Machine Tap M3 is available for immediate purchase, ideal for precision machining in industrial and workshop settings.
