Machine Tap M4 | High-Speed Cobalt Steel | DIN 371 Compliant | Plain Finish | by Wurth

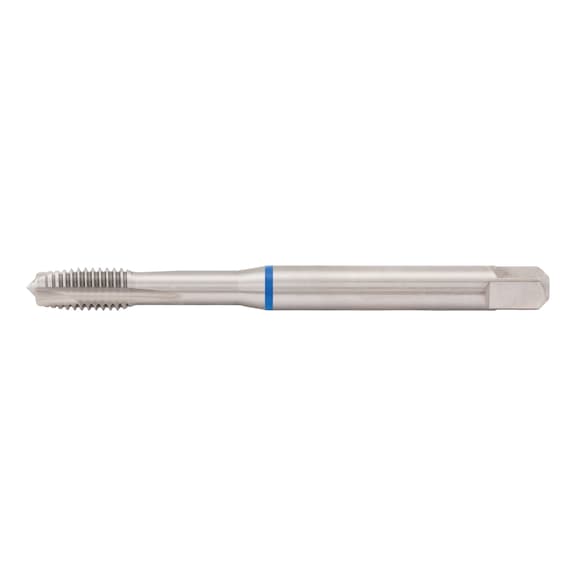

The Machine Tap M4 is designed for precision machining with a metric thread type and 0.7 mm pitch, crafted from high-speed cobalt steel for durability. Ideal for general machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength, this tap ensures secure fitting with its cylindrical shank and square drive. Perfect for trained machinists using milling or drilling machines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M4 | High-Speed Cobalt Steel | DIN 371 Compliant | Plain Finish | by Wurth
Brand: Wurth
SKU: 6534
Alternatively Known As: Machine Tap M4, Blue Ring Tap, Metric Thread Cutter, HSCo Tap
Technical Specifications
- Thread type: Metric thread M4
- Pitch: 0.7 mm
- Length: 63 mm
- Shank diameter: 4.5 mm
- Size of square: 3.4 mm
- DIN standard: 371
- Cutting material: High-speed cobalt steel (HSCo)
- Surface finish: Plain
- Form: B
- Core hole diameter: 3.3 mm
- Shank style: Cylindrical with square drive
- Tolerance: ISO 2 (6H)
- Suitable for tensile strength up to: 850 N/mm²
- Service life rating: 2 of 4 points
- Trueness to gauge: 4 of 4 points
- Versatility rating: 1 of 4 points
- Cutting behaviour rating: 3 of 4 points
- Chip formation rating: 2 of 4 points
- Material subgroup: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 63mm x 63mm x 4.5mm
- Weight: 0.1 kg
Key Features
- Metric thread type M4 with 0.7 mm pitch
- High-speed cobalt steel (HSCo) cutting material
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 371 standard
- ISO 2 (6H) tolerance for screw taps
- Plain surface finish
- Form B design for general applications
Professional Installation Requirements
- Use by trained machinists or operators with appropriate machine setup and safety precautions.
Applications
- General machining of long-chipping, non-alloyed steels up to 850 N/mm² tensile strength
- Suitable for milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSCo material extends tool life reducing waste
- Precision manufacturing reduces material waste during machining
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth Blue Ring Machine Tap M4 is available for immediate purchase, ideal for machining applications in steel materials.
