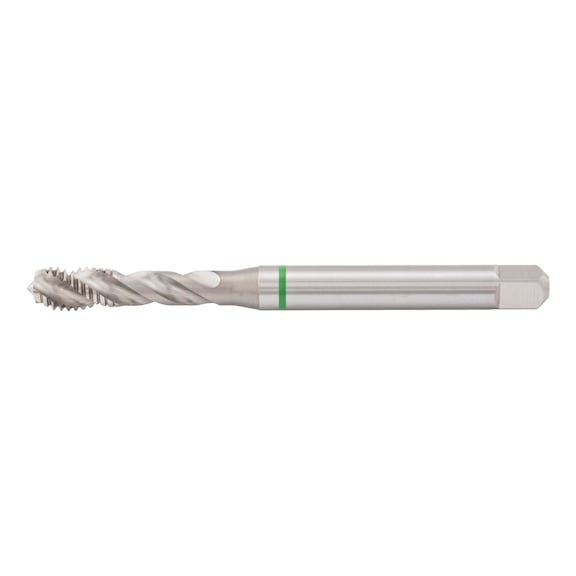

Machine Tap M5 | High-Speed Cobalt | 0.8 mm Pitch | Blind Hole Capability | by Wurth
The Machine Tap M5 is designed for precision machining of high-alloyed and stainless steels, featuring a 0.8 mm pitch and high-speed cobalt (HSCo) cutting material for enhanced durability. Ideal for use in milling and drilling applications, this tap ensures reliable performance in blind holes up to 2.5 times the diameter, making it perfect for industrial and manufacturing settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M5 | High-Speed Cobalt | 0.8 mm Pitch | Blind Hole Capability | by Wurth
Brand: Wurth
SKU: 65505
Alternatively Known As: Machine Tap M5, Metric Thread Cutter, HSCo Tap, Stainless Steel Tap
Technical Specifications
- Thread type: Metric thread M5
- Material to be processed: Steel, Stainless steel
- Hole type: Blind hole up to 2.5x diameter
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Pitch: 0.8 mm
- Length: 70 mm
- Shank diameter: 6.0 mm
- Size of square: 4.9 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: C
- Core hole diameter: 4.2 mm
- Twist angle: 40° (right)
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 1000 N/mm²
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 2 of 4 points
- Material of sub-group: Stainless steels (sulphurated, austenitic, martensitic)
- Dimensions (H x L x W): 6mm x 70mm x 6mm
- Weight: 0.1 kg
Key Features
- Low-priced machine tap designed for high-alloyed and stainless steels
- Metric thread type M5 with 0.8 mm pitch
- Suitable for blind holes up to 2.5x diameter
- High-speed cobalt (HSCo) cutting material for durability
- Cylindrical shank with square drive for secure fitting
- Complies with DIN 371 standard
- ISO 2 (6H) tolerance for screw taps
- Twist angle 40° (right-hand)
- Surface finish: Plain
- Form C with core hole diameter 4.2 mm
Professional Installation Requirements
- Professional use recommended with appropriate machine tools and safety equipment.
Applications
- Machining alloyed and high-alloyed steels including stainless, rust-resistant, and acid-resistant steels
- Processing conventional steel materials up to 850 N/mm² strength
- Suitable for milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable cutting material reduces tool replacement frequency, minimizing waste
- Efficient cutting reduces energy consumption during machining
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Machine Tap M5 is available for immediate purchase, ideal for precision machining in industrial and manufacturing settings.
