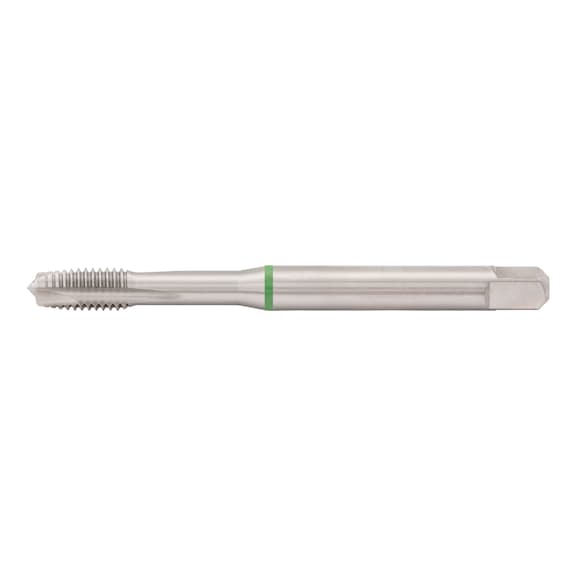

Machine Tap M8 | HSCo Cutting Material | DIN 371 Compliant | Plain Surface Finish | by Wurth
The Machine Tap M8 is designed for precision metric thread cutting with a 1.25 mm pitch, ideal for machining alloyed and high-alloyed steels, including stainless and rust-resistant materials. Made from durable HSCo cutting material, this tap features a cylindrical shank with a square drive, ensuring high trueness to gauge and optimized chip formation. Perfect for use in milling/drill centers and pedestal drilling machines, it’s a reliable choice for trained machinists.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Machine Tap M8 | HSCo Cutting Material | DIN 371 Compliant | Plain Surface Finish | by Wurth
Brand: Wurth
SKU: 6558
Alternatively Known As: Machine Tap M8, Metric Thread Cutter, HSCo Tap, Stainless Steel Tap, Thread Cutter Tool
Technical Specifications
- Thread type: Metric thread M8 x 1.25 mm pitch
- Material to be processed: Steel, Stainless steel (austenitic, martensitic, sulphurated)
- Hole type: Clearance hole with 3xD depth
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Length: 90 mm
- Shank diameter: 8.0 mm
- Size of square: 6.2 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: B
- Core hole diameter: 6.8 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2 (6H)
- Suitable for tensile strength up to: 1000 N/mm²
- Service life (points system): 2 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 2 of 4 points
- Dimensions (H x L x W): n/a mm x 90mm x n/a mm
- Weight: 0.1 kg
Key Features
- Designed for metric thread cutting (M8 x 1.25 mm pitch)
- Made from HSCo cutting material with plain surface finish
- Cylindrical shank with square drive (6.2 mm square size)
- Complies with DIN 371 standard, Form B
- Suitable for tensile strength up to 1000 N/mm²
- ISO 2 (6H) tolerance for screw taps
- Optimized for clearance hole with 3xD depth
- High trueness to gauge (4 of 4 points)
- Balanced cutting behaviour and chip formation
Professional Installation Requirements
- No professional installation required; suitable for use by trained machinists or operators familiar with machine tapping processes.
Applications
- Machining alloyed and high-alloyed steels including stainless, rust-resistant, and acid-resistant steels
- Processing conventional steel materials up to 850 N/mm² strength
- Suitable for use in milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable cutting tool reduces waste by extending service life
- Efficient machining reduces energy consumption during manufacturing
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth for specific warranty details.
Available Now
The Wurth Low-Priced Machine Tap M8 is available for immediate purchase, ideal for precision machining in industrial and manufacturing settings.
