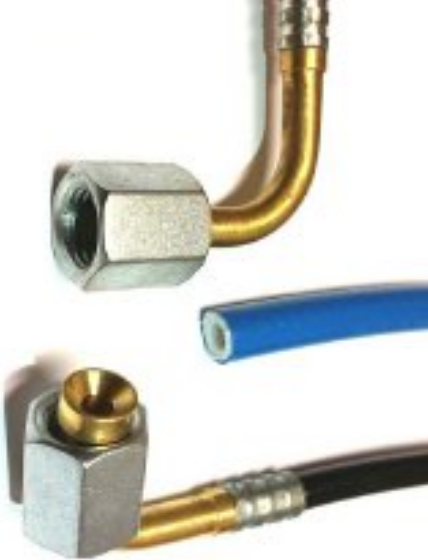

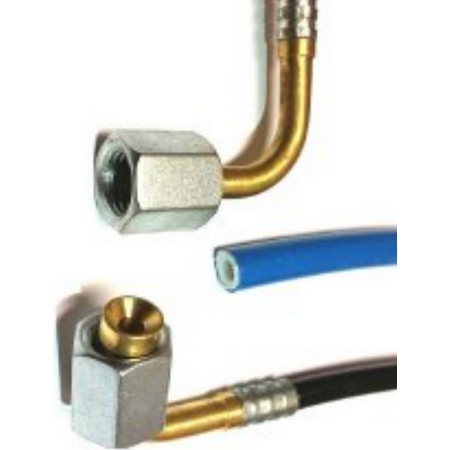

Made Hose Assembly | 2mm Inner Diameter | 1200mm Length | UV Stabilised | by Aspen Pumps
The Made Hose Assembly features a 2mm inner diameter and a 1200mm length, making it ideal for refrigeration and HVAC systems requiring flexible hose connections. Manufactured in compliance with ISO/AS 5149.2, this UV-stabilised hose ensures high elasticity and low permeation rates, compatible with common refrigerant and oil combinations for optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Made Hose Assembly | 2mm Inner Diameter | 1200mm Length | UV Stabilised | by Aspen Pumps
Brand: Aspen Pumps
SKU: 902-12-EE-44
Alternatively Known As: Flexible Hose Assembly, Refrigeration Hose, HVAC Hose Assembly, Made Hose Flexible Line
Technical Specifications
- Hose Inner Diameter: 2mm
- Length: 1200mm
- Connection Type: 1/4 FSAE 90° Elbow x 1/4 FSAE 90° Elbow
- Standard Compliance: ISO/AS 5149.2
- Maximum Working Pressure: 53 bar
- Material: UV stabilised flexible hose
- Permeation Rate: Low, compliant with EN1736 and EN378
- Refrigerant Compatibility: Compatible with common refrigerant and oil combinations
- Dimensions (H x L x W): 20mm x 1200mm x 1200mm
- Weight: 0.3 kg
Key Features
- Hose ID: 2mm with 1200mm length
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified HVAC or refrigeration technician is recommended to ensure compliance with safety standards and optimal performance.
Applications
- Refrigeration systems requiring flexible hose connections
- HVAC systems with refrigerant and oil compatibility
- Industrial and commercial refrigeration installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- UV stabilisation extends product life, reducing waste and replacement frequency
- CO2 compliance supports use of environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
