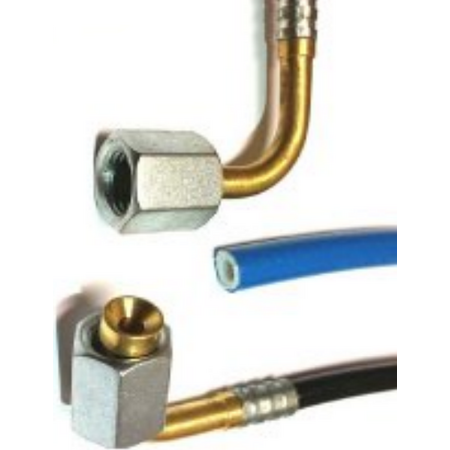

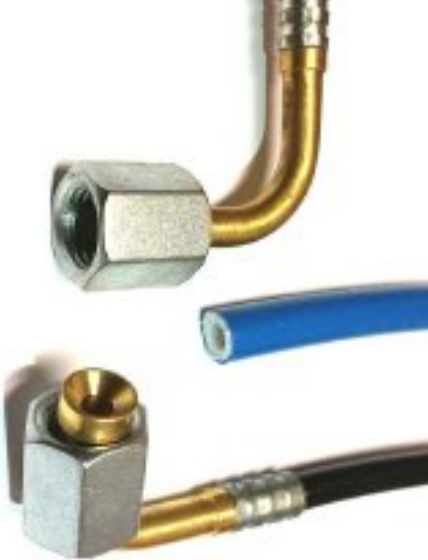

Made Hose Assembly | 2mm Inner Diameter | 900mm Length | UV Stabilised | by Aspen Pumps
The Made Hose Assembly features a 2mm inner diameter and a 900mm length, making it perfect for flexible connections in refrigeration and HVAC systems. Manufactured to ISO/AS 5149.2 standards, this hose is UV stabilised and compatible with common refrigerant and oil combinations, ensuring high performance and safety in industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Made Hose Assembly | 2mm Inner Diameter | 900mm Length | UV Stabilised | by Aspen Pumps
Brand: Aspen Pumps
SKU: 902-09-EE-44
Alternatively Known As: Flexible Refrigerant Hose Assembly, Refrigeration Hose, Flexible Hose with 90 Degree Elbow, SKYREFLEX Hose Assembly
Technical Specifications
- Hose Inner Diameter: 2mm
- Length: 900mm
- Connection Type: 1/4 FSAE 90° Elbow x 1/4 FSAE 90° Elbow
- Manufactured to ISO/AS 5149.2 standards
- UV Stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- Safe Working Pressure (SWP): 53 bar
- CO2 compliant
- Dimensions (H x L x W): 20mm x 900mm x 20mm
- Weight: 0.1 kg
Key Features
- Hose ID: 2mm with 900mm length
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation should be performed by a qualified HVAC or refrigeration technician to ensure compliance with safety and performance standards.
Applications
- Refrigeration systems requiring flexible hose connections
- HVAC systems with refrigerant and oil compatibility
- Industrial and commercial refrigeration installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- UV stabilisation extends product life, reducing waste
- CO2 compliance supports use with environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
