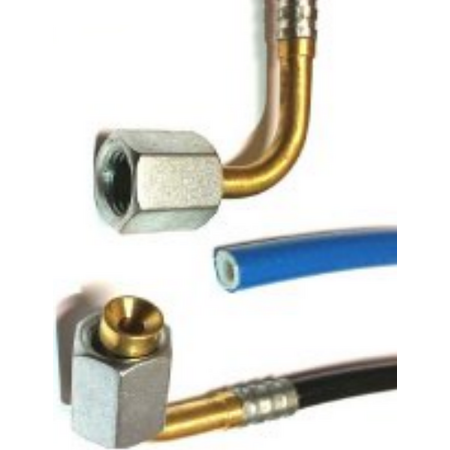

Made Hose Assembly | 2mm Inner Diameter | UV Stabilised & Low Permeation | 53 Bar SWP | by Aspen Pumps
The Made Hose Assembly is designed for refrigeration and HVAC systems, featuring a 2mm inner diameter and UV stabilisation for high elasticity. With a low permeation rate compliant with EN1736 and EN378, it ensures minimal refrigerant leakage, making it ideal for both industrial and commercial applications. This hose assembly is compatible with common refrigerant and oil combinations, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Made Hose Assembly | 2mm Inner Diameter | UV Stabilised & Low Permeation | 53 Bar SWP | by Aspen Pumps
Brand: Aspen Pumps
SKU: 902-06-SE-44
Alternatively Known As: Flexible Refrigeration Hose Assembly, Refrigerant Hose, HVAC Flexible Hose, CO2 Compliant Hose Assembly
Technical Specifications
- Hose Inner Diameter: 2mm
- Length: 600mm
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- Safe Working Pressure (SWP): 53 bar
- Fittings: 1/4 FSAE Straight x 1/4 FSAE 90° Elbow
- Dimensions (H x L x W): 10mm x 600mm x 10mm
- Weight: 0.1 kg
Key Features
- Hose ID: 2mm
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure system integrity and compliance with safety standards.
Applications
- Refrigeration systems requiring flexible hose connections
- HVAC systems for refrigerant and oil transfer
- Industrial and commercial refrigeration installations
Standards & Compliance
- Complies with ISO/AS 5149.2 for refrigeration hose assemblies
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- CO2 compliance supports use of environmentally friendly refrigerants
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
