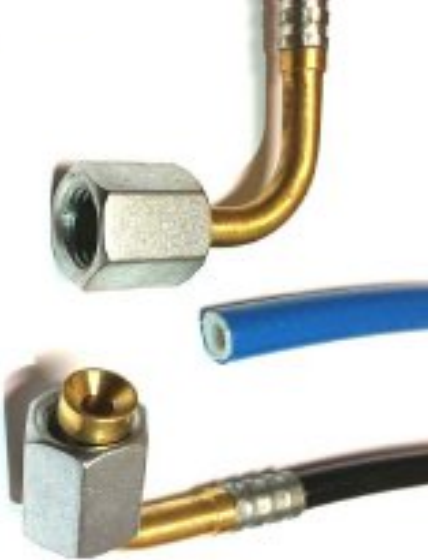

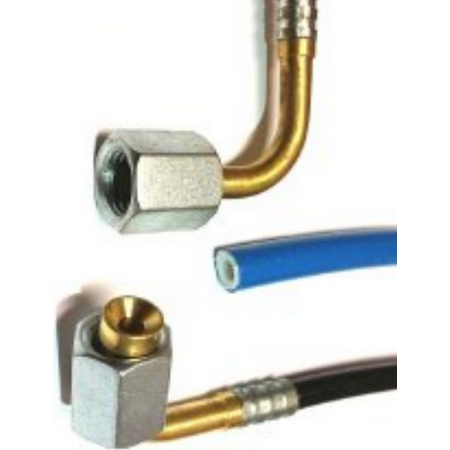

Made Hose Assembly | 4mm Inner Diameter | 1200mm Length | CO2 Compliant | by Aspen Pumps
The Made Hose Assembly features a 4mm inner diameter and a 1200mm length, making it ideal for refrigeration and HVAC systems requiring flexible hose connections. Manufactured to ISO/AS 5149.2 standards, this UV-stabilized hose ensures high elasticity and low permeation rates, minimizing refrigerant leakage and environmental impact. Perfect for industrial and commercial applications, it is compatible with common refrigerant and oil combinations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Made Hose Assembly | 4mm Inner Diameter | 1200mm Length | CO2 Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 904-12-EE-44
Alternatively Known As: Flexible Hose Assembly, Refrigeration Hose, HVAC Flexible Line, CO2 Compliant Hose
Technical Specifications
- Hose Inner Diameter: 4mm
- Length: 1200mm
- Connection Type: 1/4 FSAE 90° Elbow x 1/4 FSAE 90° Elbow
- Manufactured to ISO/AS 5149.2 standards
- UV Stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- CO2 compliant with 53 bar Safe Working Pressure (SWP)
- Dimensions (H x L x W): 20mm x 1200mm x 20mm
- Weight: 0.3 kg
Key Features
- Hose ID: 4mm with 1200mm length
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified refrigeration or HVAC technician is recommended to ensure compliance with safety and performance standards.
Applications
- Refrigeration systems requiring flexible hose connections
- HVAC systems with refrigerant and oil compatibility
- Industrial and commercial refrigeration installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- UV stabilisation extends product life, reducing waste
- Compatible with environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
