Made Hose Assembly | 4mm Inner Diameter | 1200mm Length | UV Stabilised | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 904-12-SE-44
$66.70 List price: $80.70
Free pick up (over 25 kg or over 1 meter)
For delivery quote message
30 Days Return Delivery Options

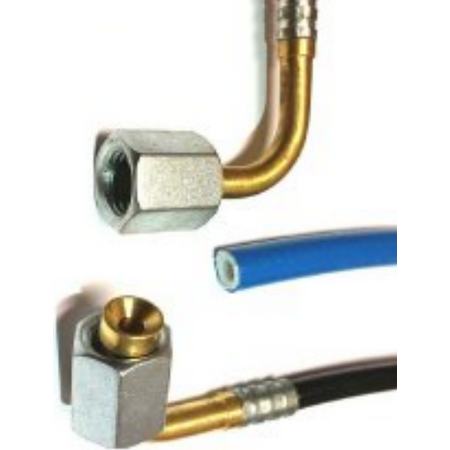

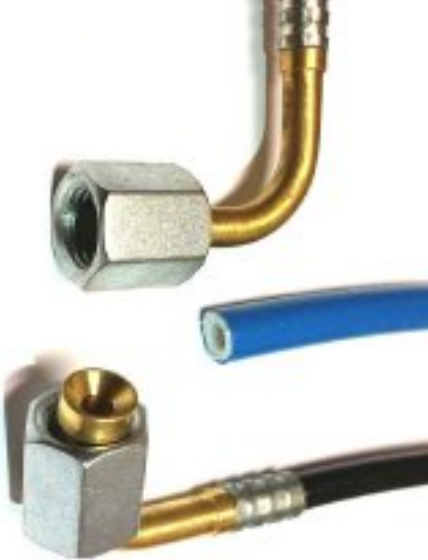

The Made Hose Assembly is designed for refrigeration and HVAC applications, featuring a 4mm inner diameter and a durable 1200mm length. With UV stabilization and a low permeation rate, it ensures reliable performance in flexible hose connections, making it ideal for both industrial and commercial refrigeration systems.

Product Name/Title: Made Hose Assembly | 4mm Inner Diameter | 1200mm Length | UV Stabilised | by Aspen Pumps

Brand: Aspen Pumps

SKU: 904-12-SE-44

Alternatively Known As: Flexible Refrigerant Hose Assembly, Refrigeration Hose Line, HVAC Flexible Hose, CO2 Refrigerant Hose

Technical Specifications
  • Hose Inner Diameter: 4mm
  • Length: 1200mm
  • Manufactured in accordance with ISO/AS 5149.2
  • UV stabilised with high elasticity
  • Low permeation rate compliant with EN1736 and EN378
  • Compatible with common refrigerant and oil combinations
  • CO2 compliant with 53 bar Safe Working Pressure (SWP)
  • Dimensions (H x L x W): 20mm x 1200mm x 1200mm
  • Weight: 0.3 kg
Key Features
  • Hose ID: 4mm with 1200mm length
  • UV stabilised with high elasticity for durability
  • Low permeation rate compliant with EN1736 and EN378
  • Compatible with common refrigerant and oil combinations
  • CO2 compliant with 53 bar SWP
Professional Installation Requirements
  • Installation by a qualified HVAC technician or refrigeration professional is recommended to ensure system integrity and compliance with safety standards.
Applications
  • Refrigeration systems requiring flexible hose connections
  • HVAC systems for refrigerant and oil transfer
  • Industrial and commercial refrigeration installations
Standards & Compliance
  • Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
  • Low permeation rate reduces refrigerant leakage, minimizing environmental impact
  • CO2 compliant design supports use of environmentally friendly refrigerants
Warranty Information

Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.

Available Now

The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
