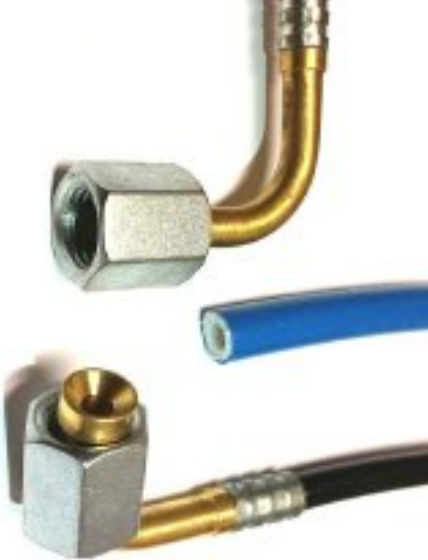

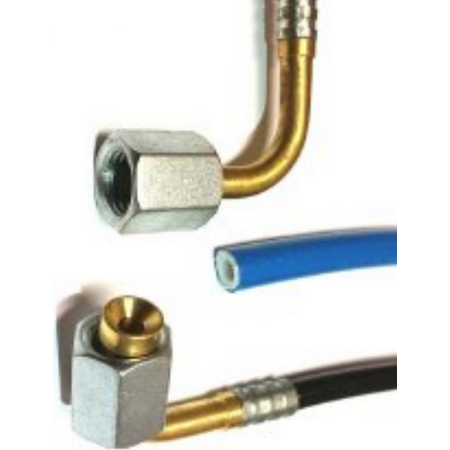

Made Hose Assembly | 4mm Inner Diameter | 900mm Length | UV Stabilised | by Aspen Pumps
The Made Hose Assembly features a 4mm inner diameter and a 900mm length, making it ideal for refrigeration and HVAC applications. Manufactured in accordance with ISO/AS 5149.2, this flexible hose is UV stabilised and has a low permeation rate, ensuring compatibility with common refrigerants and oils, including CO2. Perfect for industrial and commercial installations, it minimizes environmental impact while providing reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Made Hose Assembly | 4mm Inner Diameter | 900mm Length | UV Stabilised | by Aspen Pumps
Brand: Aspen Pumps
SKU: 904-09-EE-44
Alternatively Known As: Flexible Hose Assembly, Refrigeration Hose, HVAC Hose Assembly, Made Hose Flexible Line
Technical Specifications
- Hose Inner Diameter: 4mm
- Length: 900mm
- Connection Type: 1/4 FSAE 90° Elbow x 1/4 FSAE 90° Elbow
- Pressure Rating: 53 bar SWP
- Standards: Manufactured in accordance with ISO/AS 5149.2
- Material: UV stabilised flexible hose with high elasticity
- Permeation Rate: Low, compliant with EN1736 and EN378
- Refrigerant Compatibility: Compatible with common refrigerant and oil combinations including CO2
- Dimensions (H x L x W): 20mm x 900mm x 900mm
- Weight: 0.2 kg
Key Features
- Hose ID: 4mm with 900mm length
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified HVAC or refrigeration technician is recommended to ensure compliance with safety and performance standards.
Applications
- Refrigeration systems requiring flexible hose connections
- HVAC systems with refrigerant and oil compatibility
- Industrial and commercial refrigeration installations
Standards & Compliance
- AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- UV stabilisation extends product life, reducing waste
- Compatible with CO2 refrigerants supporting eco-friendly refrigeration solutions
Warranty Information
Standard manufacturer warranty applies; please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
