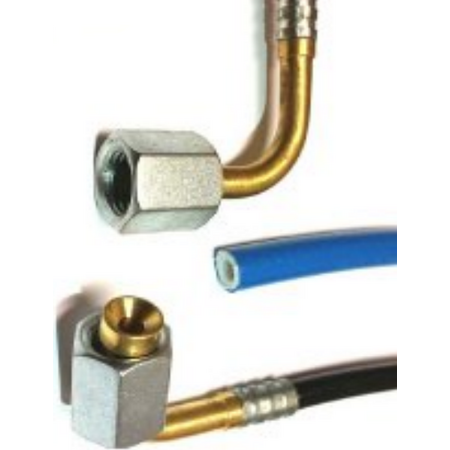

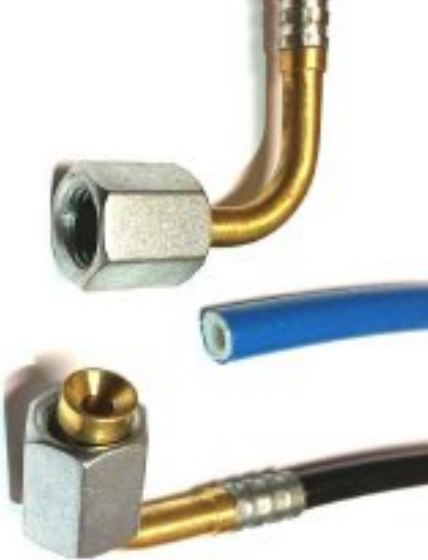

Made Hose Assembly | 4mm Inner Diameter | UV Stabilised & High Elasticity | CO2 Compliant | by Aspen Pumps
The Made Hose Assembly is designed for refrigeration and HVAC systems, featuring a 4mm inner diameter and a length of 600mm. With UV stabilization and high elasticity, it ensures durability and flexibility in various applications. This hose is compliant with EN1736 and EN378 standards, making it ideal for industrial and commercial refrigeration installations while minimizing environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Made Hose Assembly | 4mm Inner Diameter | UV Stabilised & High Elasticity | CO2 Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 904-06-SE-66
Alternatively Known As: Flexible Hose Assembly, Refrigeration Hose, HVAC Hose Assembly, Made Hose Flexible Line
Technical Specifications
- Hose Inner Diameter: 4mm
- Length: 600mm
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar Safe Working Pressure (SWP)
- Dimensions (H x L x W): 20mm x 600mm x 600mm
- Weight: 0.2 kg
Key Features
- Hose ID: 4mm
- Length: 600mm
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified refrigeration or HVAC technician is recommended to ensure compliance with safety and performance standards.
Applications
- Refrigeration systems requiring flexible hose connections
- HVAC systems
- Industrial and commercial refrigeration installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and environmental requirements
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- CO2 compliant design supports use of environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
