Made Hose Assembly | 4mm ID | UV Stabilised & High Elasticity | CO2 Compliant | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 904-12-SE-66
$66.70 List price: $80.70
+ −
30 Days Return Delivery Options

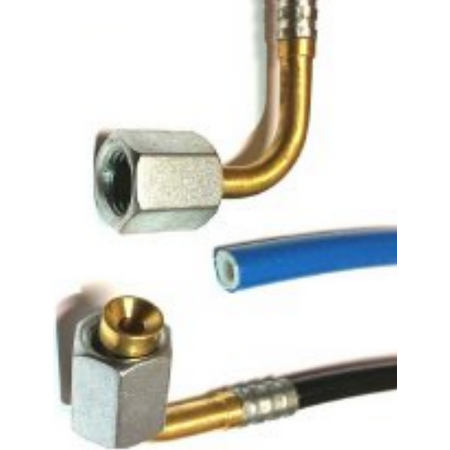

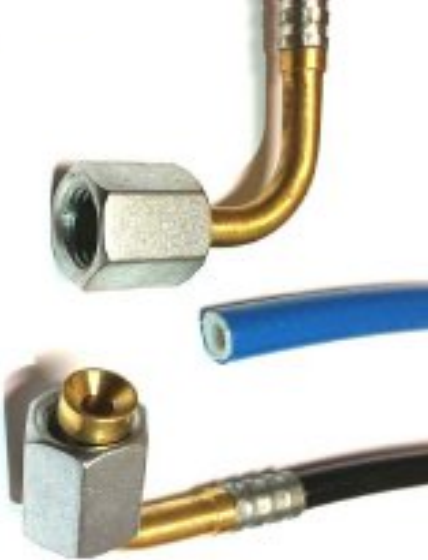

<p>The Made Hose Assembly is designed for refrigeration and HVAC systems, featuring a 4mm inner diameter and UV stabilisation for enhanced durability. With a low permeation rate compliant with EN1736 and EN378, this flexible hose assembly is perfect for high flow applications, ensuring reliable connections for refrigerant and oil lines.</p>

Product Name/Title: Made Hose Assembly | 4mm ID | UV Stabilised & High Elasticity | CO2 Compliant | by Aspen Pumps

Brand: Aspen Pumps

SKU: 904-12-SE-66

Alternatively Known As: Flexible Hose Assembly, Refrigeration Hose, HVAC Hose Assembly, Made Hose Flexible Line

Technical Specifications
  • Hose ID: 4mm
  • Length: 1200mm
  • Manufactured in accordance with ISO/AS 5149.2
  • UV stabilised with high elasticity
  • Low permeation rate compliant with EN1736 and EN378
  • Compatible with common refrigerant and oil combinations
  • CO2 compliant with 53 bar SWP
  • Dimensions (H x L x W): 20mm x 1200mm x 20mm
  • Weight: 0.3 kg
Key Features
  • Hose ID: 4mm
  • Length: 1200mm
  • UV stabilised with high elasticity
  • Low permeation rate compliant with EN1736 and EN378
  • Compatible with common refrigerant and oil combinations
  • CO2 compliant with 53 bar SWP
Professional Installation Requirements
  • Installation by a qualified HVAC technician or professional is recommended to ensure compliance with safety and performance standards.
Applications
  • Refrigeration and air conditioning systems
  • Flexible hose connections for refrigerant and oil lines
  • HVAC installations requiring high flow and durable hose assemblies
Standards & Compliance
  • Complies with AS/NZS 5149.2 for refrigeration systems safety and environmental requirements
Environmental Benefits
  • Low permeation rate reduces refrigerant leakage, minimizing environmental impact
  • UV stabilisation extends product life, reducing waste and replacement frequency
Warranty Information

Warranty details available upon request; typically includes coverage against manufacturing defects.

Available Now

The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
