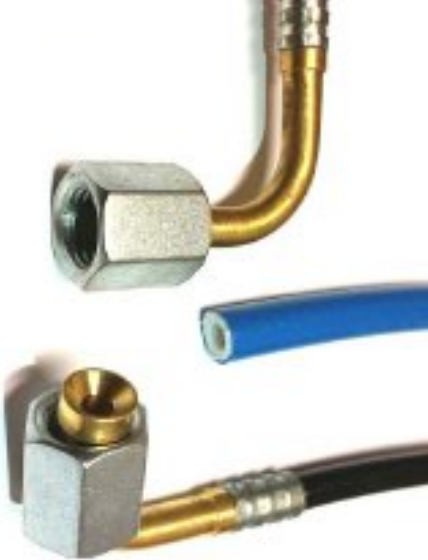

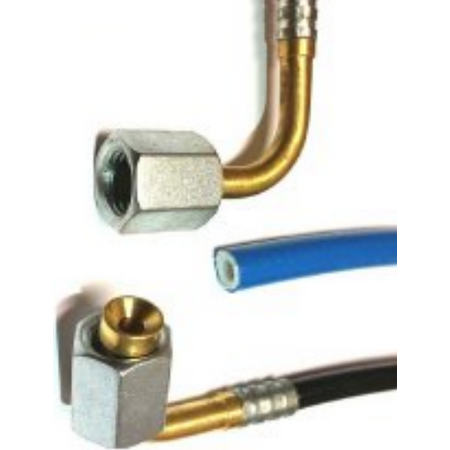

Made Hose Assembly | 4mm Inner Diameter | UV Stabilised & High Elasticity | CO2 Compliant | by Aspen Pumps
The Made Hose Assembly is designed for refrigeration and HVAC systems, featuring a 4mm inner diameter and UV stabilisation for high elasticity. With a low permeation rate compliant with EN1736 and EN378, it ensures minimal refrigerant leakage, making it ideal for industrial fluid transfer applications. This hose assembly is compatible with common refrigerant and oil combinations, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Made Hose Assembly | 4mm Inner Diameter | UV Stabilised & High Elasticity | CO2 Compliant | by Aspen Pumps
Brand: Aspen Pumps
SKU: 904-12-SS-44
Alternatively Known As: Flexible Hose Assembly, Refrigeration Hose, HVAC Hose, Made Hose Line
Technical Specifications
- Hose Inner Diameter: 4mm
- Length: 1200mm
- Manufactured in accordance with ISO/AS 5149.2
- UV Stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
- Dimensions (H x L x W): 20mm x 1200mm x 20mm
- Weight: 0.3 kg
Key Features
- Hose ID: 4mm
- Length: 1200mm
- UV Stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified HVAC or refrigeration technician is recommended to ensure system integrity and compliance with safety standards.
Applications
- Refrigeration systems requiring flexible hose connections
- HVAC systems
- Industrial fluid transfer applications
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration safety and performance
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- CO2 compliant design supports use of environmentally friendly refrigerants
Warranty Information
Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.
Available Now
The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
