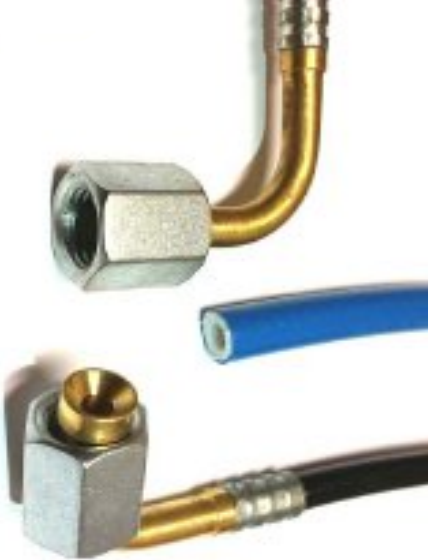

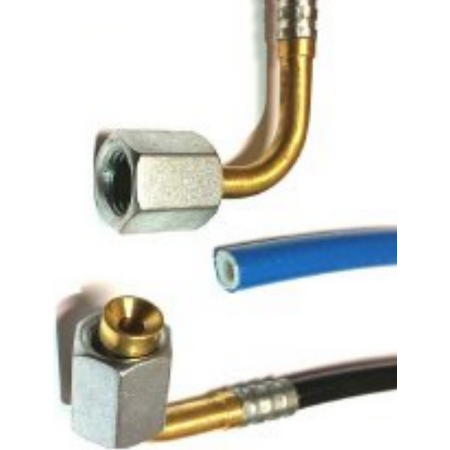

Made Hose Assembly | 4mm Inner Diameter | UV Stabilised & Low Permeation | by Aspen Pumps
The Made Hose Assembly is designed for refrigeration and HVAC systems, featuring a 4mm inner diameter and UV stabilised construction for high elasticity. With a low permeation rate compliant with EN1736 and EN378, it ensures minimal refrigerant leakage, making it ideal for industrial and commercial applications. This flexible hose assembly is compatible with common refrigerant and oil combinations, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Made Hose Assembly | 4mm Inner Diameter | UV Stabilised & Low Permeation | by Aspen Pumps
Brand: Aspen Pumps
SKU: 904-09-SE-44
Alternatively Known As: Flexible Refrigeration Hose Assembly, Refrigeration Hose Line, HVAC Flexible Hose
Technical Specifications
- Hose Inner Diameter: 4mm
- Length: 900mm
- Manufactured in accordance with ISO/AS 5149.2
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar Safe Working Pressure (SWP)
- Dimensions (H x L x W): 20mm x 900mm x 20mm
- Weight: 0.2 kg
Key Features
- Hose ID: 4mm
- UV stabilised with high elasticity
- Low permeation rate compliant with EN1736 and EN378
- Compatible with common refrigerant and oil combinations
- CO2 compliant with 53 bar SWP
Professional Installation Requirements
- Installation by a qualified HVAC or refrigeration technician is recommended to ensure system integrity and compliance with safety standards.
Applications
- Refrigeration systems requiring flexible hose connections
- HVAC systems with refrigerant and oil compatibility
- Industrial and commercial refrigeration installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Low permeation rate reduces refrigerant leakage, minimizing environmental impact
- CO2 compliance supports use of environmentally friendly refrigerants
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
