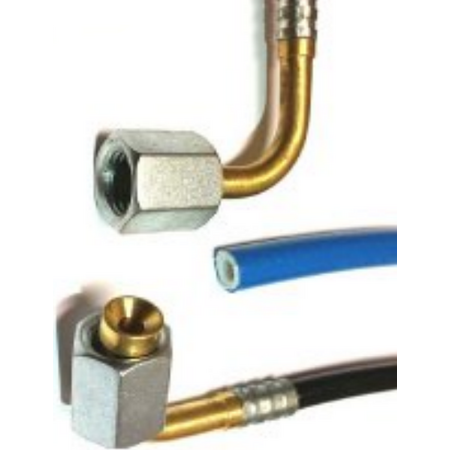

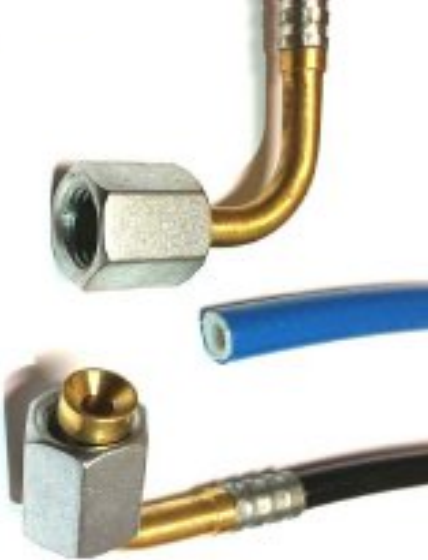

Made Hose Assembly | 4mm Inner Diameter | UV Stabilised & Low Permeation | by Aspen Pumps

BRAND: Aspen Pumps
SKU: 904-09-SE-66
$61.50 List price: $74.50
+ −
30 Days Return Delivery Options
The Made Hose Assembly is designed for refrigeration and HVAC applications, featuring a 4mm inner diameter and UV stabilised construction for high elasticity. With a low permeation rate compliant with EN1736 and EN378, this hose ensures minimal refrigerant leakage, making it ideal for both industrial and commercial refrigeration systems.

Product Name/Title: Made Hose Assembly | 4mm Inner Diameter | UV Stabilised & Low Permeation | by Aspen Pumps

Brand: Aspen Pumps

SKU: 904-09-SE-66

Alternatively Known As: Flexible Hose Assembly, Refrigeration Hose, HVAC Hose Assembly, SKYREFLEX Hose

Technical Specifications
  • Hose Inner Diameter: 4mm
  • Length: 900mm
  • Pressure Rating: 53 bar SWP
  • Standards: Manufactured in accordance with ISO/AS 5149.2
  • UV Stabilised with high elasticity
  • Low permeation rate compliant with EN1736 and EN378
  • Compatible with common refrigerant and oil combinations
  • Dimensions (H x L x W): 20mm x 900mm x 20mm
  • Weight: 0.2 kg
Key Features
  • Hose ID: 4mm
  • UV stabilised with high elasticity
  • Low permeation rate compliant with EN1736 and EN378
  • CO2 compliant with 53 bar SWP
  • Manufactured in accordance with ISO/AS 5149.2
Professional Installation Requirements
  • Installation should be performed by a qualified HVAC or refrigeration technician to ensure compliance with safety and performance standards.
Applications
  • Refrigeration systems requiring flexible hose connections
  • HVAC installations
  • Industrial and commercial refrigeration
  • Compatible with common refrigerant and oil combinations
Standards & Compliance
  • AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
  • Low permeation rate reduces refrigerant leakage, minimizing environmental impact
  • CO2 compliant design supports use of environmentally friendly refrigerants
Warranty Information

Standard manufacturer warranty applies. Please refer to Aspen Pumps warranty policy for details.

Available Now

The Aspen Pumps Made Hose Assembly is available for immediate purchase, ideal for refrigeration and HVAC flexible hose applications.
