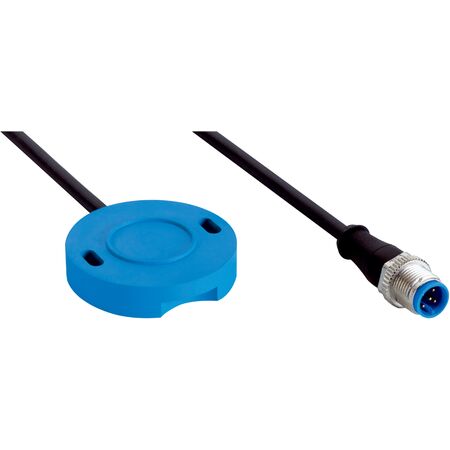

Magnetic Angle Sensor | 0° to 360° Measuring Range | 12-Bit Resolution | IP67/IP68 Rated | by SICK
The Magnetic Angle Sensor is designed for precise angle measurement with a 0° to 360° range and 12-bit resolution, making it ideal for industrial automation and robotics. With a high repeatability of less than 0.3° and a fast sampling rate of 900 Hz, this sensor ensures accurate position feedback in machine control systems. Its robust IP67/IP68 rated enclosure provides excellent protection against environmental factors, ensuring reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Measuring range: 0° to 360°
- Resolution: 12 bit
- Linearity error (typical): ±1°
- Repeatability: <0.3°
- Number of adjustable angles: 32
- Sampling rate: 900 Hz
- Electrical wiring: DC 5-wire
- Working distance: 1.5 mm to 4 mm
- Magnetic misalignment tolerance: ±0.2 mm
- Supply voltage: 10 V DC to 30 V DC
- Residual ripple: 10%
- Voltage drop: ≤ 2 V
- Current consumption: ≤ 30 mA
- Power-up pulse protection: Yes
- Connection type: Cable with M12, 5-pin plug, 1 m length
- Cable material: PUR
- Conductor cross section: 0.34 mm²
- Cable diameter: 4.8 mm
- Housing material: Plastic (PPS)
- Tightening torque: Typically 1 Nm
- Protection class: III
- EMC compliance: EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6
- Enclosure rating: IP67 and IP68 (EN 60529)
- Operating temperature range: -40°C to +80°C
- Shock resistance: 100 g, 6 shocks, 6 ms; continuous shock 40 g, 6 ms, 8,000 shocks
- Vibration resistance: 15 g, 5 Hz to 2,000 Hz, 120 minutes
- Smart Task functions: Base logics with timer functions and inverter
- Switching outputs: QL1, QL2, QL3 with LED indicators
- Dimensions (H x L x W): 10mm x 47mm x 47mm
- Weight: 0.1 kg
Key Features
- Measuring range of 0° to 360° with 12-bit resolution
- High repeatability of less than 0.3°
- Sampling rate of 900 Hz for fast response
- IP67 and IP68 rated enclosure for robust protection
- Operating temperature range from -40°C to +80°C
- Three switching outputs with LED indicators
- Cable with M12, 5-pin connector for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for precise angle measurement
- Robotics for position feedback
- Machine control systems requiring high-resolution angle detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable IP67/IP68 housing reduces environmental damage and extends product life
- Low power consumption with efficient electronics
- Robust design minimizes waste through reduced failure rates
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MASQ47-36PEKU1SA10 Magnetic Angle Sensor is available for immediate purchase, ideal for industrial automation and robotics requiring precise angle measurement.
