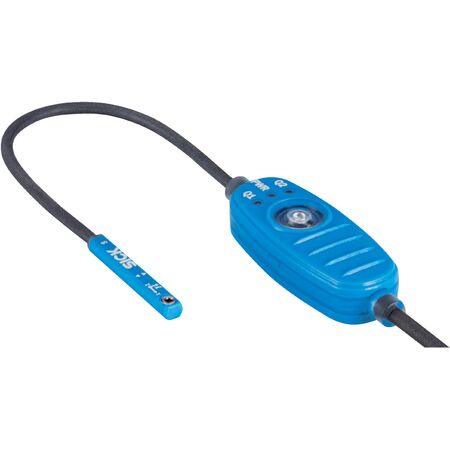

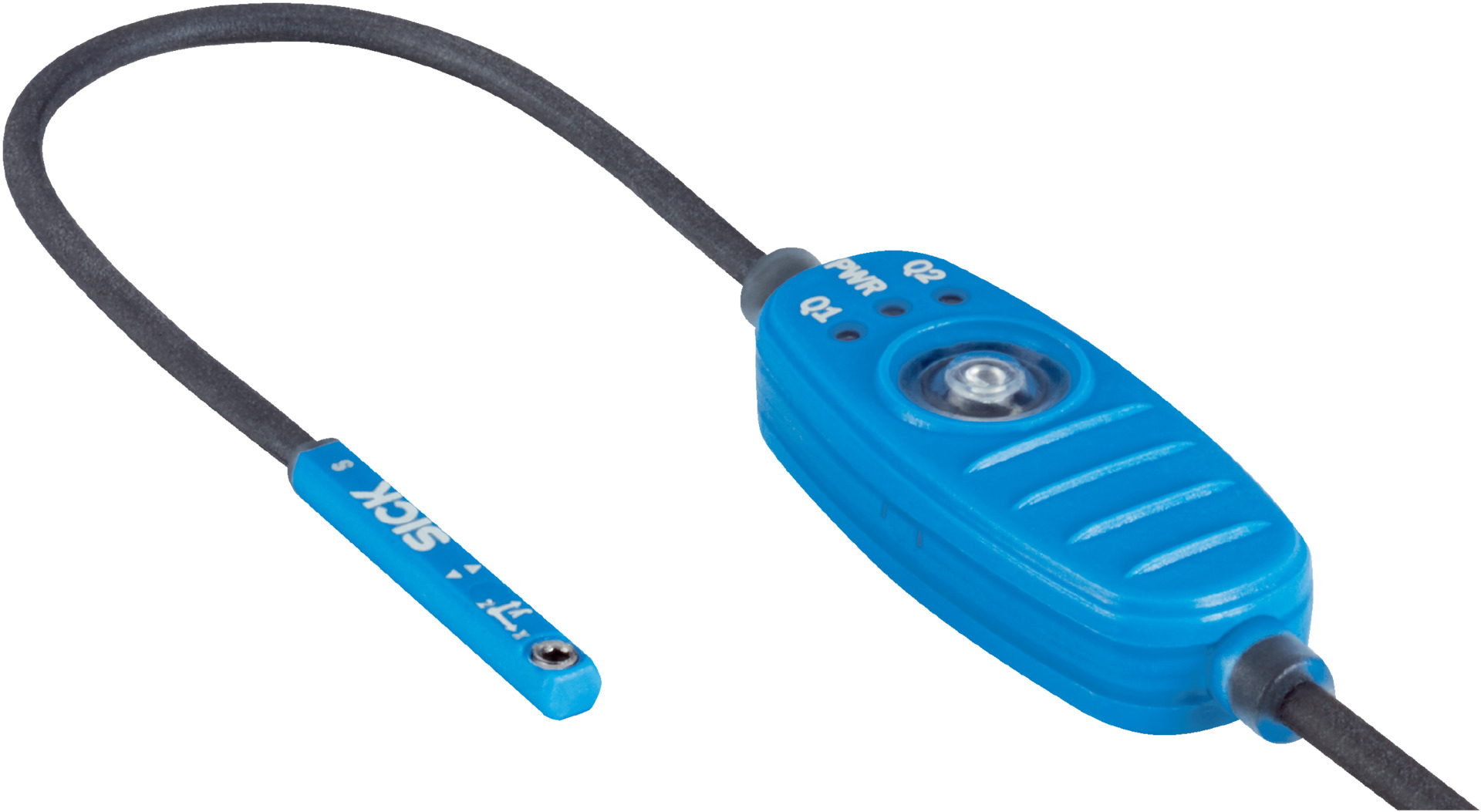

Magnetic Cylinder Position Sensor | C-slot Compatible | 50 mm Measuring Range | Analog Output 0-10V | by SICK
The Magnetic Cylinder Position Sensor is designed for precise position detection in industrial automation, featuring a 50 mm measuring range and an analog output voltage of 0 V to 10 V. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for pneumatic cylinder monitoring and robotics, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Measuring range: 50 mm
- Output function: Analog voltage 0 V to 10 V
- Electrical wiring: DC 4-wire
- Supply voltage: 13 V DC to 30 V DC
- Min. load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Power consumption: ≤ 550 mW
- Magnetic field sensitivity: 2 mT to 20 mT
- Resolution: 0.01 mm
- Linearity error: 0.3 mm
- Repeat accuracy: 0.05 mm
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC compliance: EN 60947-5-7
- Connection type: 4-wire cable, 0.5 m length
- Housing material: Plastic, PA, strengthened
- Cable material: PUR
- Control element material: Plastic, TPU, reinforced
- Dimensions (H x L x W): 15mm x 25mm x 25mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba cylinders
- Analog output voltage range 0 V to 10 V
- Measuring range of 50 mm with 0.01 mm resolution
- IP67 rated enclosure for dust and water protection
- Completely embedded mounting in the slot for protection
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- Status indicator LED and teach-in button for easy adjustment
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper setup and safety compliance.
Applications
- Industrial automation for cylinder position detection
- Pneumatic cylinder position monitoring
- Manufacturing process control
- Robotics and machinery requiring precise position feedback
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption (≤ 550 mW) supports energy efficiency
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-G50CSH55D43ZZZ Magnetic Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position monitoring applications.
