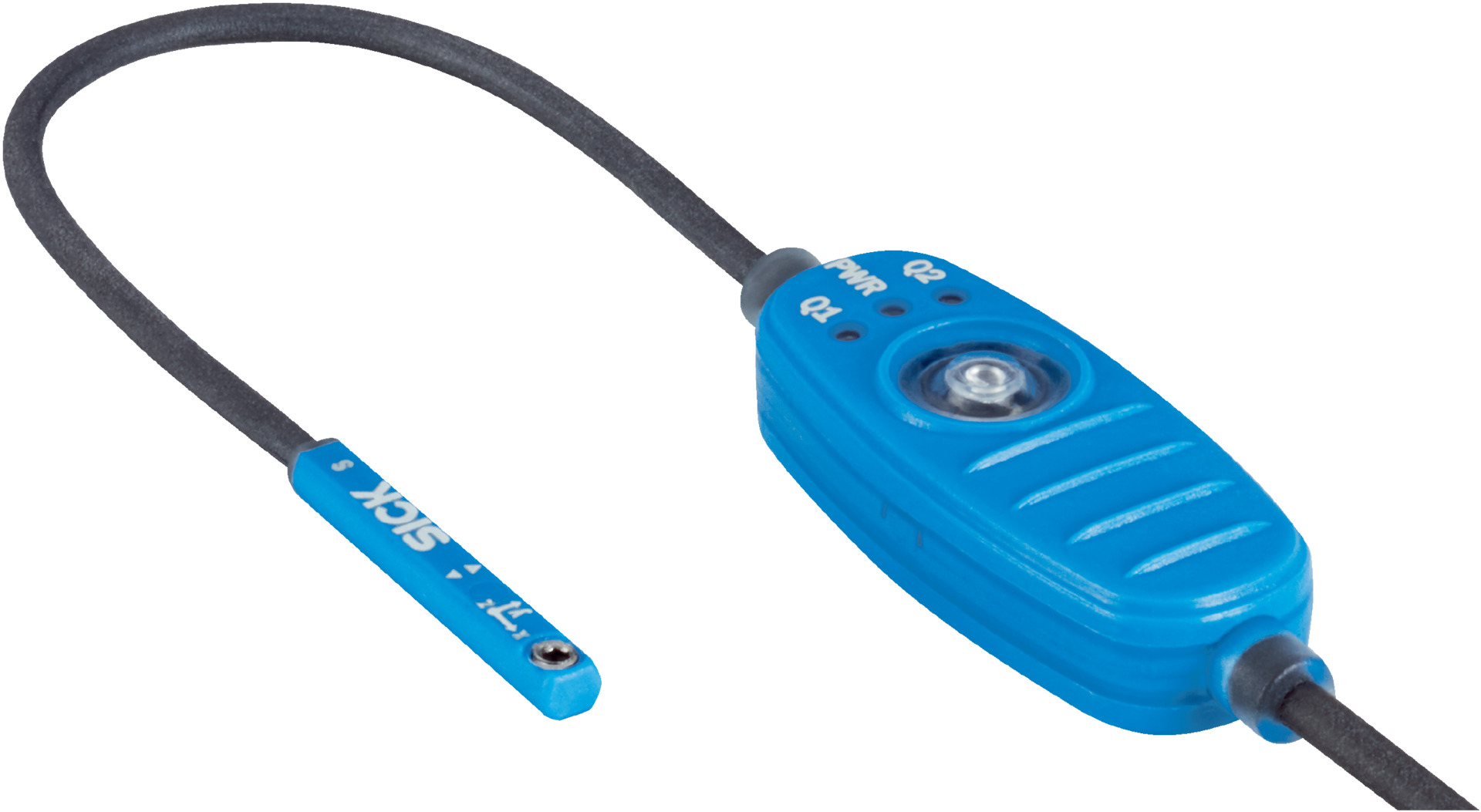

Magnetic Cylinder Position Sensor | C-slot Type | IO-Link Communication | IP67 Rated | by SICK
The Magnetic Cylinder Position Sensor is designed for precise position detection in industrial automation, featuring a C-slot type compatible with SMC and PHD cylinders. With a measuring range of 50 mm and IO-Link communication, it ensures reliable performance in pneumatic cylinder monitoring applications, making it ideal for factory automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Measuring range: 50 mm
- Switching output: 2 x push-pull PNP/NPN
- Output function: IO-Link V1.1, COM3
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -20°C to +70°C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection: 4-wire cable, 0.1 m, axial outlet
- Material: Plastic housing (PA strengthened), PUR cable, TPU control element
- Dimensions (H x L x W): 25mm x 50mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba
- Detection zone up to 50 mm
- 2 x push-pull switching outputs (PNP/NPN)
- IO-Link communication interface with configuration for up to 8 switching points
- IP67 rated enclosure for dust and water protection
- Embedded mounting in the slot for protection
- Adjustable overrun distance and hysteresis
- Actuator diagnosis and status LED indicator
- Reverse polarity and short-circuit protection
- Operating temperature range from -20°C to +70°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and pneumatic cylinder systems to ensure proper configuration and safety.
Applications
- Industrial automation for cylinder position detection
- Pneumatic cylinder monitoring
- Factory automation requiring precise position sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables efficient automation reducing energy waste
- Durable design reduces replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-G50CSH15D31DZZ Magnetic Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position monitoring applications.
