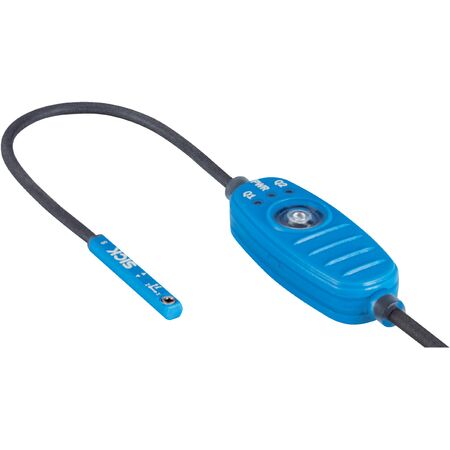

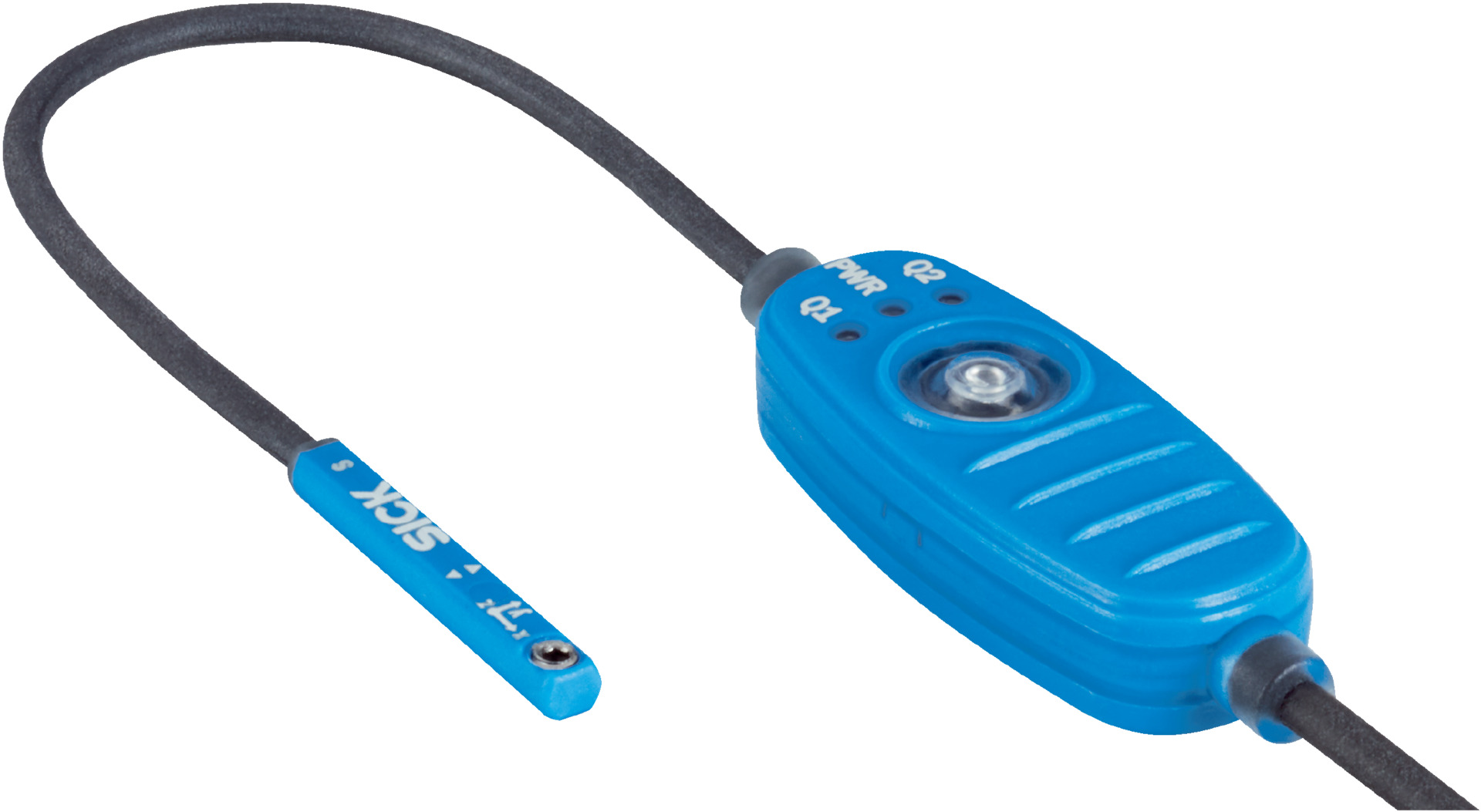

Magnetic Cylinder Position Sensor | IO-Link Communication | IP67 Rated | 0.01 mm Resolution | by SICK
The Magnetic Cylinder Position Sensor is designed for precise cylinder position detection in industrial automation. With IO-Link communication and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for use with various cylinder types, this sensor features a dynamic teach-in button for easy programming and robust protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Protection class: III
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Communication interface: IO-Link V1.1, COM3
- Process data length: 32 Bit
- Cable: PUR, 4-wire, 0.1 m length
- Housing material: Plastic, PA strengthened
- Operating temperature: -20°C to +70°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10-55 Hz, 1 mm
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type with embedded mounting for protection
- Detection zone of 0 mm to 50 mm
- 2 x push-pull switching outputs (PNP/NPN) with IO-Link communication
- IP67 rated enclosure for dust and water protection
- Dynamic teach-in button for up to 3 switching points and manual programming
- Actuator diagnosis and configurable overrun distance
- Reverse polarity and short-circuit protection
- Status indicator LED
- Operating temperature range from -20°C to +70°C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Communication interface IO-Link V1.1 with 1 ms cycle time
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for cylinder position detection
- Use with Festo, Zimmer, Gimatic cylinders
- Suitable for round body, profile, tie-rod, T-slot cylinders
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 550 mW reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MPS-G50CFH13E31DZZ Magnetic Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
