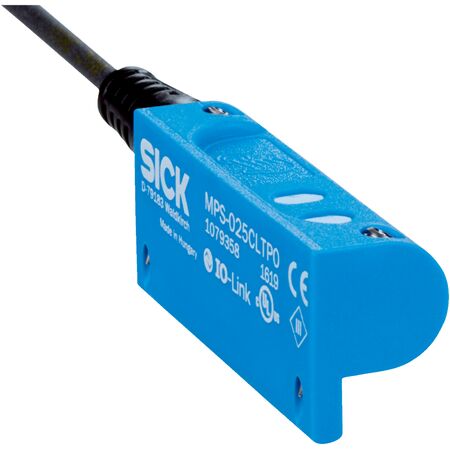

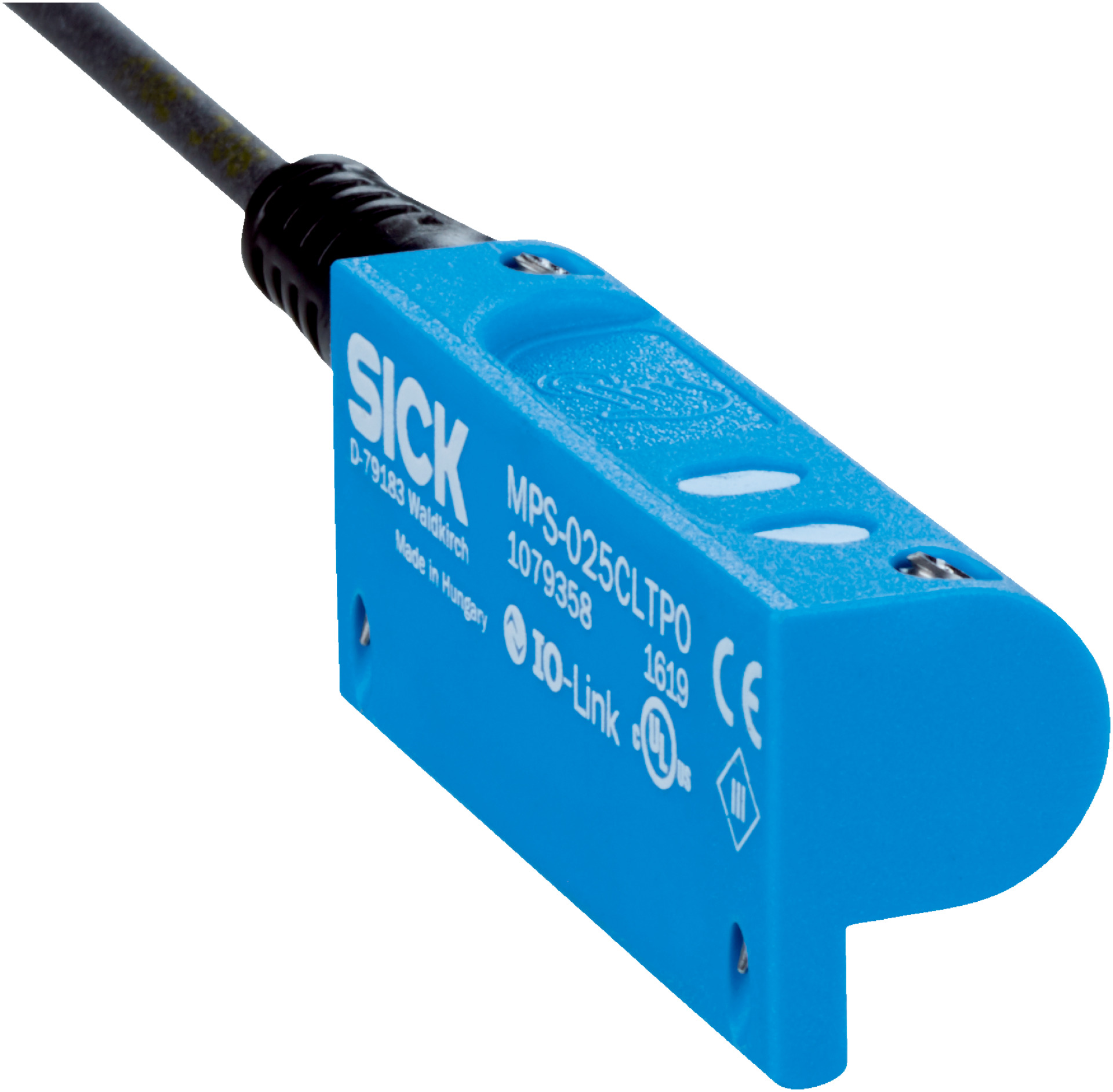

Magnetic Cylinder Position Sensor | IO-Link Communication | IP67 Rated | 100 mm Measuring Range | by SICK
The Magnetic Cylinder Position Sensor is designed for precise position feedback in industrial automation, featuring IO-Link communication and an IP67 rated enclosure for dust and water protection. With a measuring range of 100 mm and options for push-pull switching output, it's perfect for pneumatic and hydraulic cylinder monitoring, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Magnetic field sensitivity: 3 mT to 12 mT
- Resolution: ≥ 50 µm
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.1 mm typical
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection included
- Connection: 4-wire cable, 2 m length, PUR jacket
- Communication interface: IO-Link V1.1, COM3, cycle time 1 ms
- Process data length: 16 Bit
- Dimensions (H x L x W): 20mm x 115mm x 20mm
- Weight: 0.2 kg
Key Features
- C-slot cylinder type compatible with round body, profile, and tie-rod cylinders
- Measuring range of 100 mm
- Push-pull switching output with PNP/NPN options
- Analog output with voltage (0 V to 10 V) and current (4 mA to 20 mA) options
- IO-Link communication interface with advanced teach-in functions
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link integration.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient operation with low power consumption (42 mA without load)
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MPS-100CLTU0 Magnetic Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
