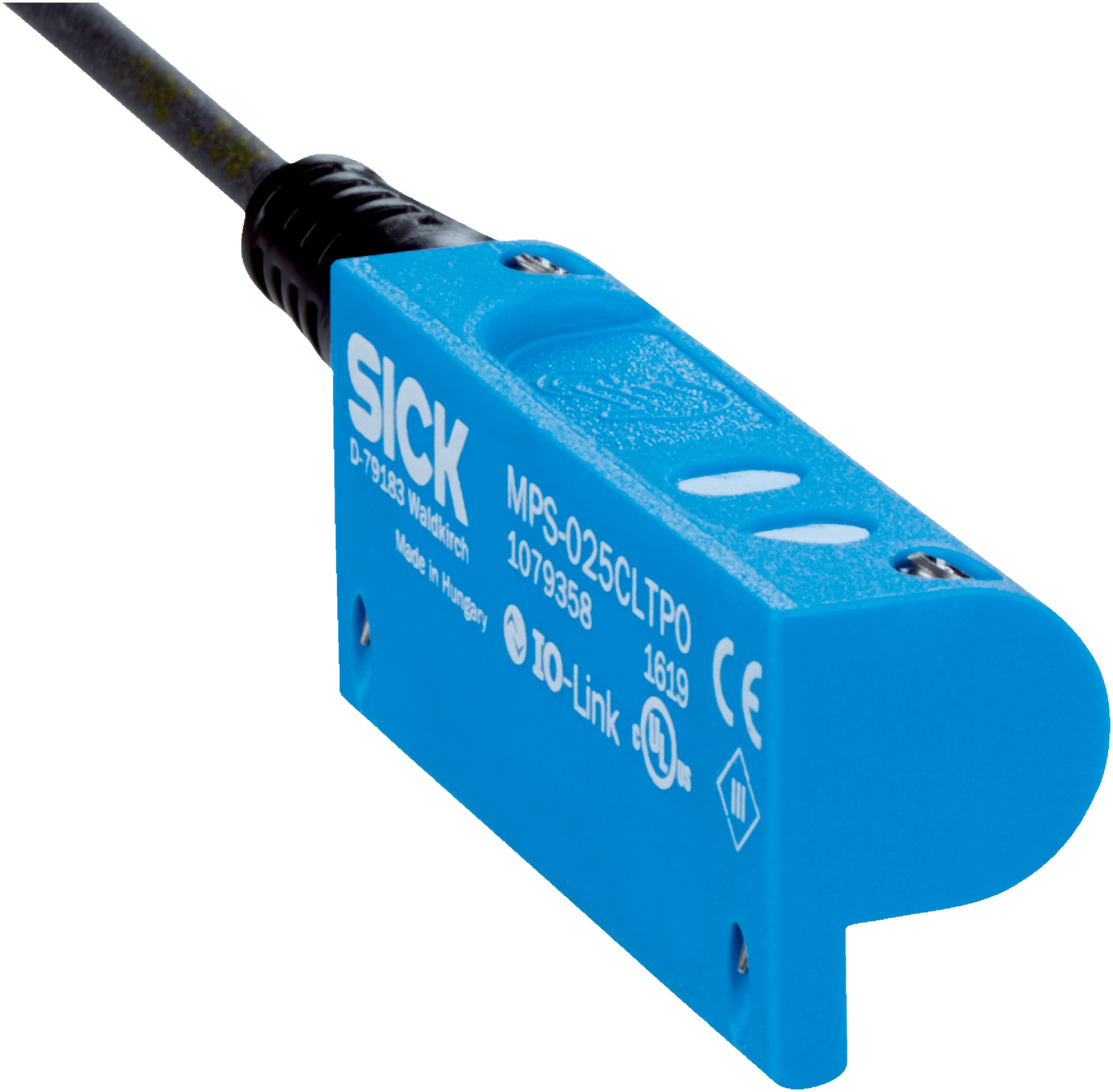

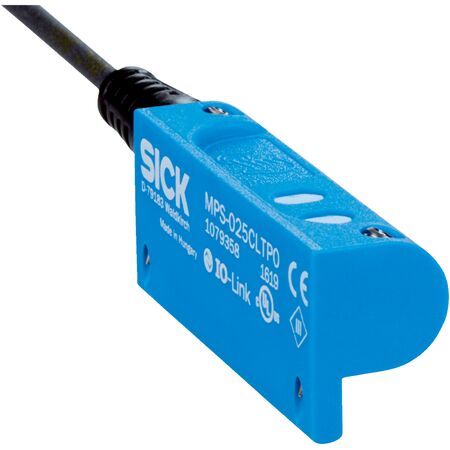

Magnetic Cylinder Position Sensor MPS-200CLTP0 | IO-Link V1.1 | IP67 Rated | 200 mm Measuring Range | by SICK
The Magnetic Cylinder Position Sensor MPS-200CLTP0 is designed for precise position sensing in C-slot cylinders, featuring a measuring range of 200 mm and an IO-Link V1.1 communication interface. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for industrial automation and control applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Magnetic field sensitivity: 3 mT to 12 mT
- Resolution: ≥ 50 µm
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.1 mm typical
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection included
- Connection: Cable with M8 male connector, 4-pin, 0.3 m length
- Material: Plastic housing, PUR cable
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-7
- Communication interface: IO-Link V1.1, COM3, 16-bit process data
- Dimensions (H x L x W): 20mm x 215mm x 20mm
- Weight: 0.3 kg
Key Features
- C-slot cylinder type compatibility
- Measuring range of 200 mm
- Push-pull PNP/NPN switching output
- Analog output options: 0 V to 10 V voltage, 4 mA to 20 mA current
- IO-Link V1.1 communication interface with COM3 and 1 ms cycle time
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Position sensing for C-slot cylinders
- Industrial automation and control
- Measurement and feedback in pneumatic and hydraulic cylinders
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (42 mA without load)
- Durable design reduces waste and replacement frequency
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-200CLTP0 Magnetic Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and precise cylinder position measurement applications.
