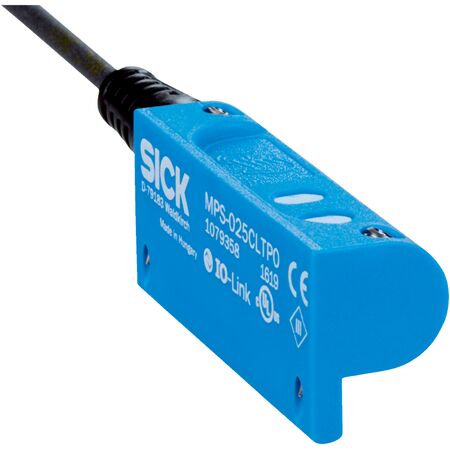

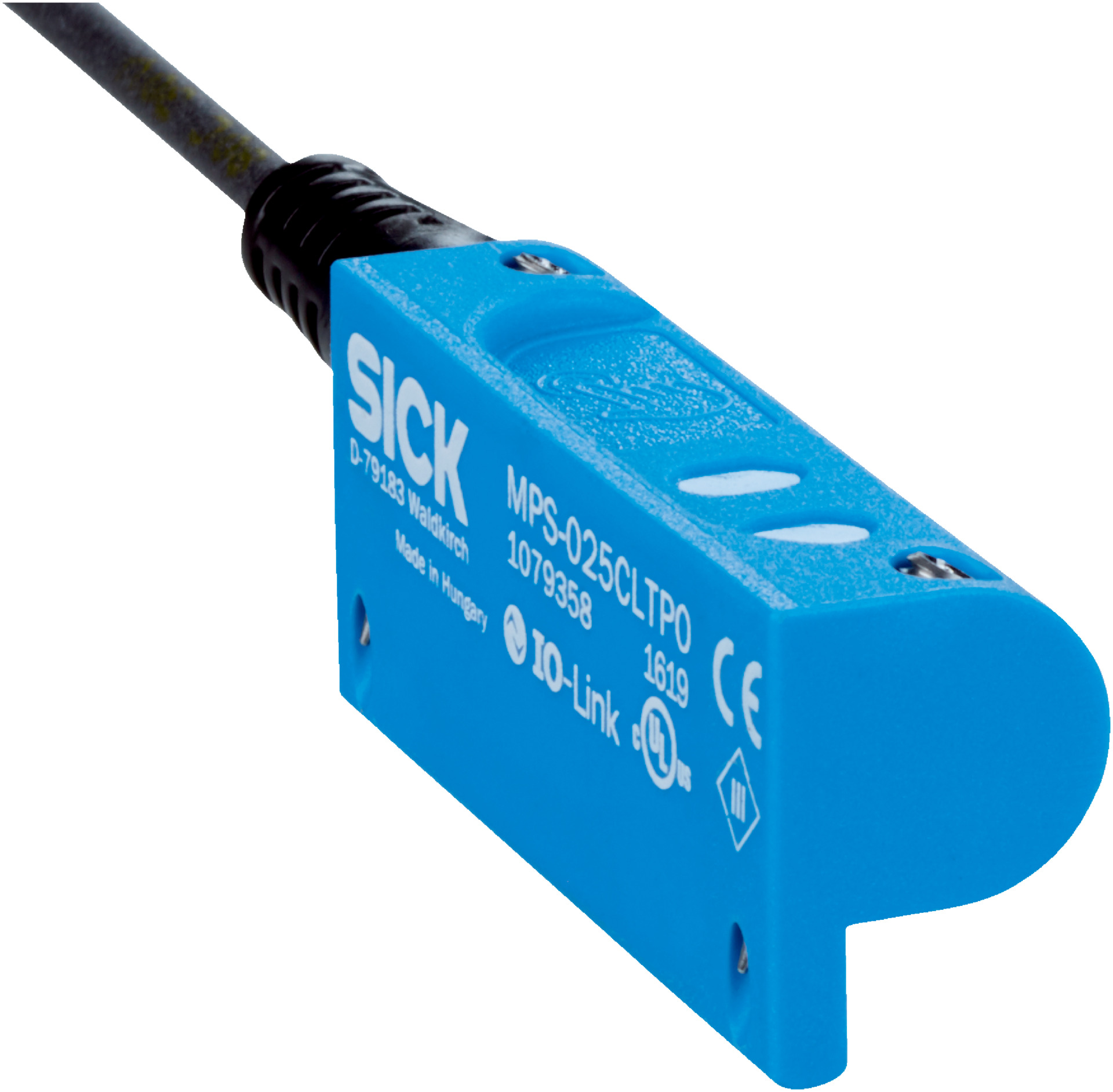

Magnetic Cylinder Position Sensor | IO-Link Communication | IP67 Rated | 200 mm Measuring Range | by SICK
The Magnetic Cylinder Position Sensor is designed for precise position feedback in industrial automation, featuring IO-Link communication and an IP67 rated enclosure for dust and water protection. With a measuring range of 200 mm and robust shock and vibration resistance, it's perfect for pneumatic and hydraulic cylinder monitoring, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Resolution: ≥ 50 µm
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.1 mm typical
- Sampling rate: 1 ms
- Protection class: III
- Connection: 4-wire cable, 2 m length, PUR jacket
- Communication: IO-Link V1.1, COM3, cycle time 1 ms
- Process data length: 16 Bit
- Operating temperature: -20 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10-55 Hz, 1 mm
- Dimensions (H x L x W): 30mm x 215mm x 30mm
- Weight: 0.5 kg
Key Features
- C-slot cylinder type compatible with round body, profile, and tie-rod cylinders
- Measuring range of 200 mm
- Push-pull switching output with PNP/NPN options
- Analog output voltage 0 V to 10 V and current 4 mA to 20 mA
- IO-Link V1.1 communication interface with multiple teach-in modes
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Wide ambient operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Supports predictive maintenance to reduce downtime and resource use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-200CLTU0 Magnetic Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
