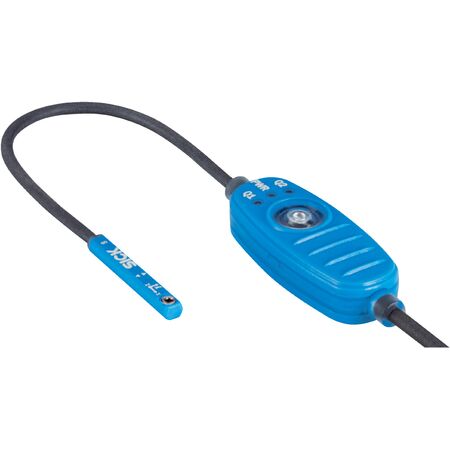

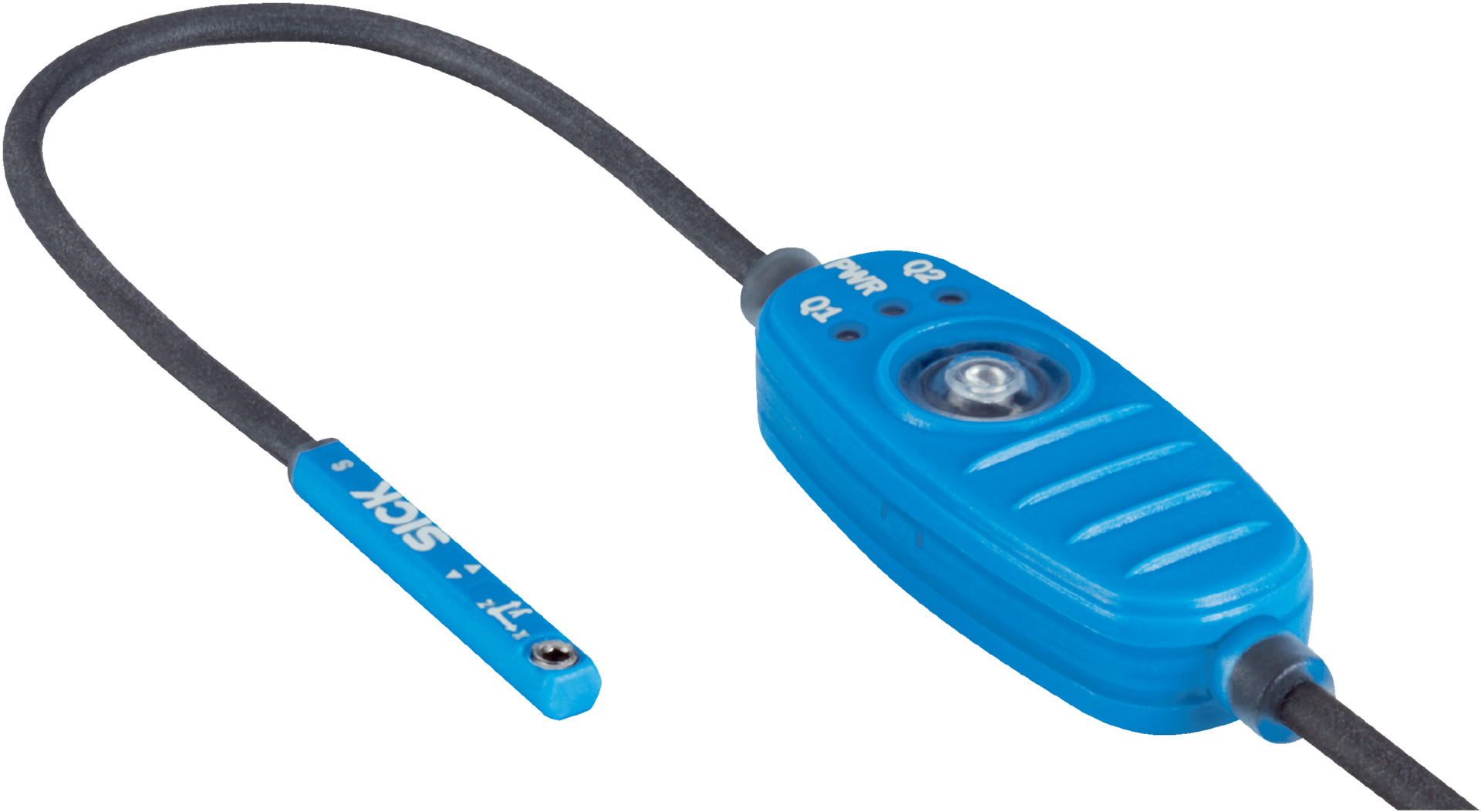

Magnetic Cylinder Position Sensor | IO-Link Communication | IP67 Rated | 50 mm Detection Zone | by SICK
The Magnetic Cylinder Position Sensor is designed for precise position detection in industrial automation, featuring IO-Link communication and an IP67 rated enclosure for robust protection. With a detection zone of up to 50 mm and dynamic teach-in capabilities, it's perfect for pneumatic and hydraulic cylinder monitoring, ensuring reliable performance in factory automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Protection class: III
- Power consumption: ≤ 550 mW
- Measuring range: 50 mm
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Communication interface: IO-Link V1.1, COM3
- Cycle time: 1 ms
- Process data length: 32 Bit
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: 4-wire cable, 0.5 m length
- Enclosure rating: IP67
- Housing material: Plastic PA, strengthened
- Cable material: PUR
- Control element material: Plastic TPU, reinforced
- Dimensions (H x L x W): 10mm x 25mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba cylinders
- Detection zone up to 50 mm
- 2 x push-pull switching outputs (PNP/NPN) with IO-Link communication
- IP67 rated enclosure for robust protection
- Dynamic teach-in button for 1 to 3 switching points configuration
- Actuator diagnosis and diagnostic functionality included
- Completely embedded mounting in the slot for protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor wiring to ensure proper configuration and safety.
Applications
- Industrial automation for cylinder position detection
- Pneumatic and hydraulic cylinder monitoring
- Factory automation requiring precise position sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 550 mW reduces energy usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-G50CSH55D31DZZ Magnetic Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position monitoring applications.
