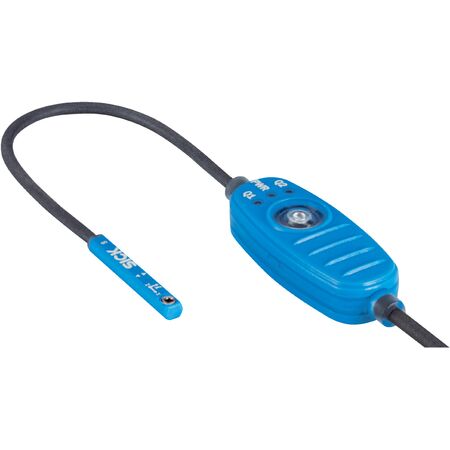

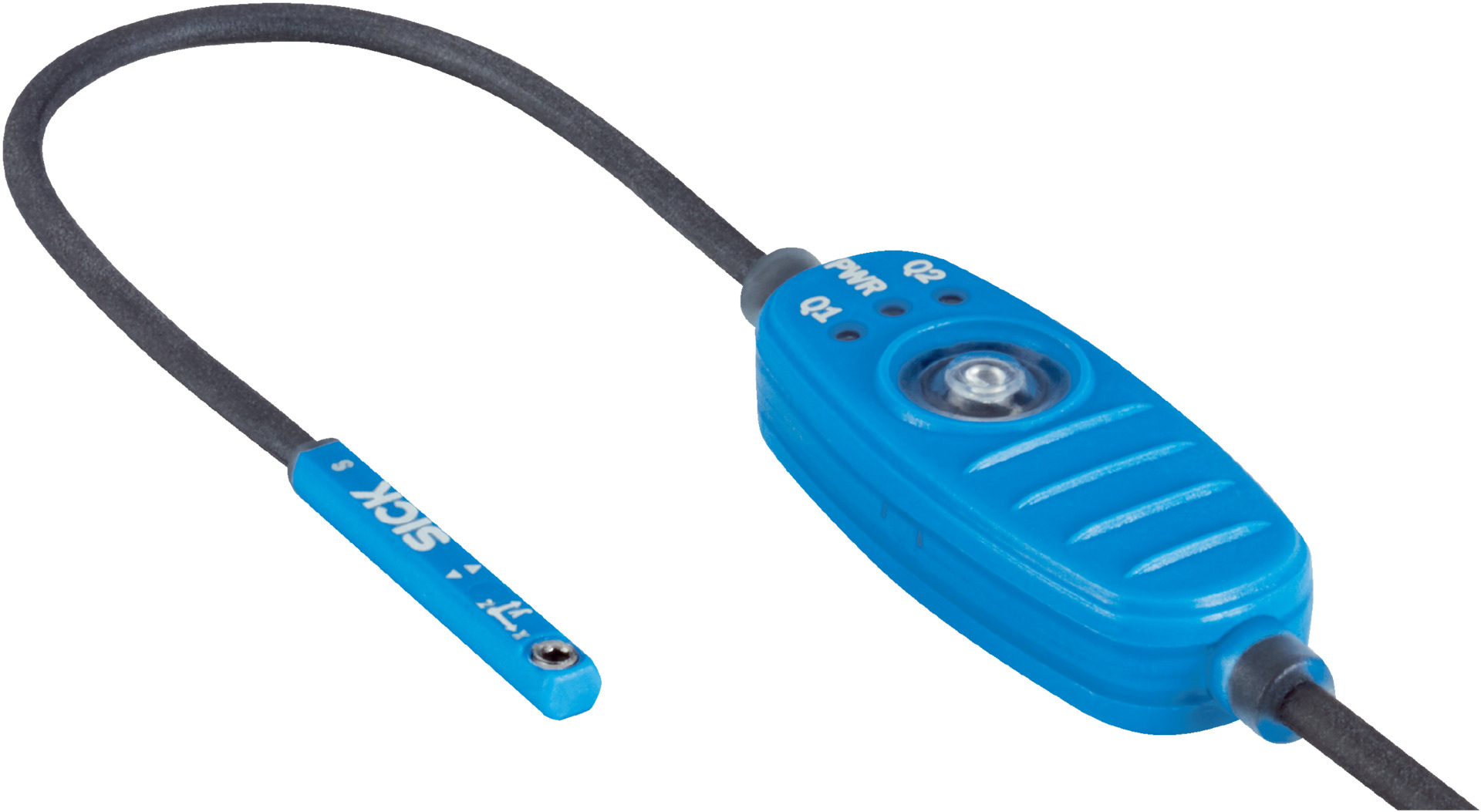

Magnetic Cylinder Position Sensor | IO-Link Communication | IP67 Rated | 50mm Detection Zone | by SICK
The Magnetic Cylinder Position Sensor is designed for precise cylinder position sensing in industrial automation. With IO-Link communication and an IP67 rated enclosure, it ensures robust performance in pneumatic and hydraulic applications. Ideal for factory automation, this sensor features a detection zone of up to 50 mm and dynamic teach-in capabilities for flexible configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Voltage drop: ≤ 1 V
- Continuous current: ≤ 200 mA
- Protection class: III
- Power consumption: ≤ 550 mW
- Resolution: 0.01 mm typical
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.05 mm typical
- Sampling rate: 1 ms
- Communication interface: IO-Link V1.1, COM3, cycle time 1 ms
- Process data length: 32 Bit
- Operating temperature: -20 °C to +70 °C
- Connection: 4-wire cable, 0.1 m length, axial outlet
- Housing material: strengthened plastic PA
- Cable material: PUR
- Control element material: reinforced plastic TPU
- Enclosure rating: IP67
- Switching output: 2 x push-pull PNP/NPN
- Diagnostic functionality: actuator diagnosis with status data
- Dimensions (H x L x W): 10mm x 25mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with Festo, Zimmer, Gimatic
- Detection zone up to 50 mm
- 2 x push-pull switching outputs (PNP/NPN) with IO-Link communication
- IP67 rated enclosure for robust protection
- Embedded mounting in slot for protection
- Dynamic teach-in and manual programming for up to 3 switching points
- Configurable overrun distance and hysteresis
- Actuator diagnosis and status indicator LED
- Reverse polarity and short-circuit protection
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with IO-Link devices and industrial sensor wiring to ensure proper configuration and safety.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (≤ 550 mW)
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-G50CFH15D31DZZ Magnetic Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
