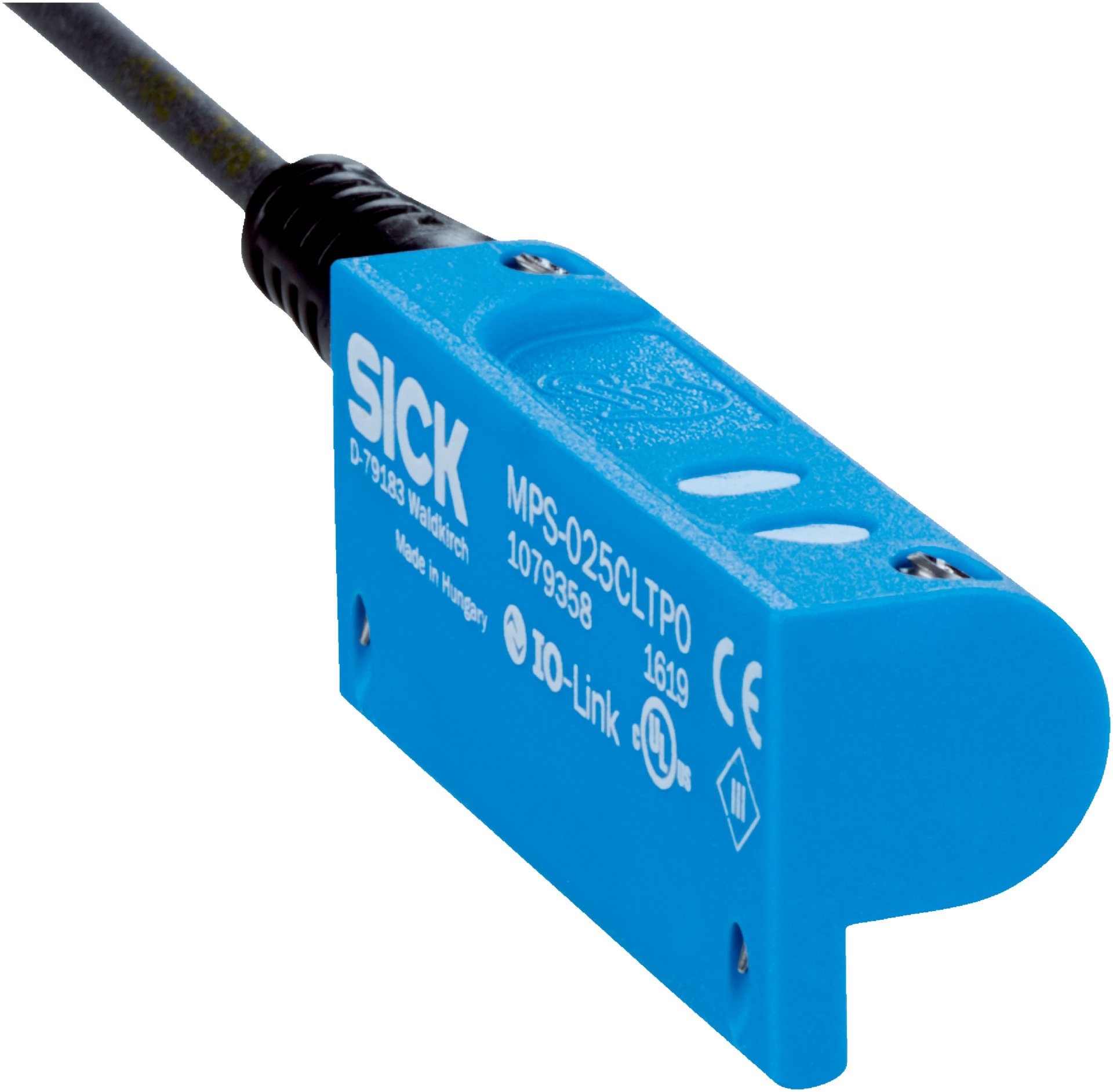

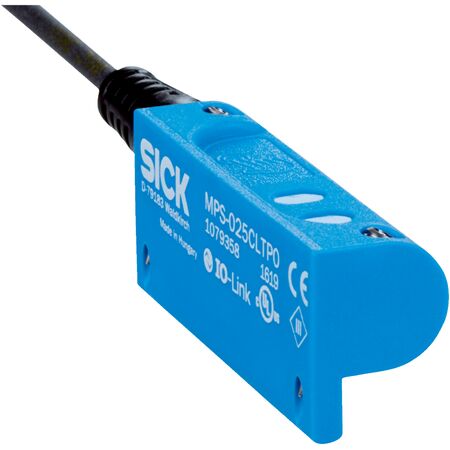

Magnetic Cylinder Position Sensor | IO-Link Communication | IP67 Rated | High Resolution | by SICK
The Magnetic Cylinder Position Sensor is designed for precise cylinder position sensing in industrial automation. With IO-Link communication and an IP67 rated enclosure, it ensures reliable performance in harsh environments. Ideal for pneumatic and hydraulic cylinder monitoring, this sensor offers a measuring range of 25 mm and high resolution of ≥ 50 µm, making it perfect for factory automation and process control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Magnetic field sensitivity: 3 mT to 12 mT
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.1 mm typical
- Sampling rate: 1 ms typical
- Connection: Cable with M8 male connector, 4-pin, 0.3 m
- Cable diameter: 2.6 mm
- Housing material: Plastic
- Cable material: PUR
- EMC: According to EN 60947-5-7
- Communication interface: IO-Link V1.1, COM3
- Process data length: 16 Bit
- Dimensions (H x L x W): 15mm x 41mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with round body, profile, and tie-rod cylinders
- Measuring range of 25 mm with high resolution ≥ 50 µm
- Push-pull switching output with PNP/NPN options
- Analog output voltage 0 V to 10 V and current 4 mA to 20 mA
- IO-Link V1.1 communication interface with 1 ms cycle time
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Wide ambient operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link communication setup.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation requiring precise position feedback
- Process control systems with analog and digital output needs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption in automation systems
- Durable IP67 housing extends product life, reducing waste
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-025CLTP0 Magnetic Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and precise cylinder position monitoring applications.
