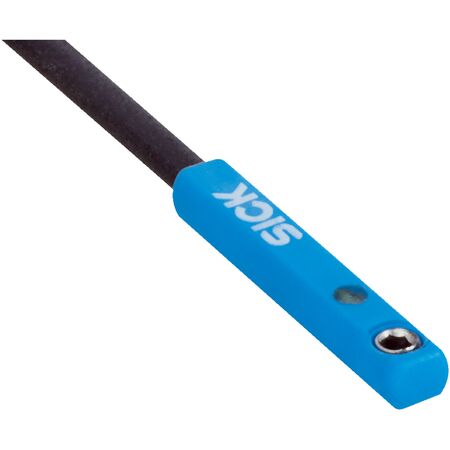

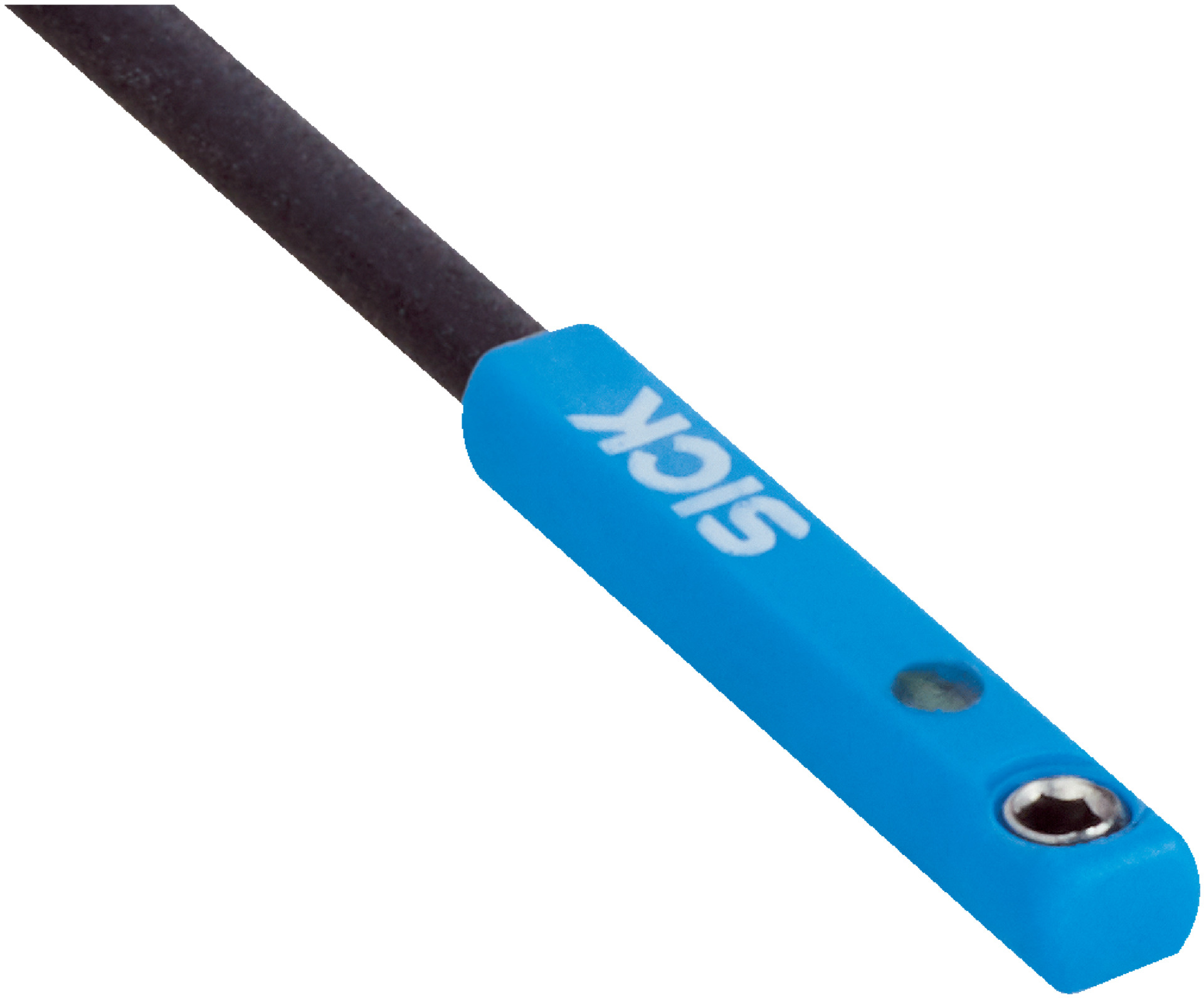

Magnetic Cylinder Sensor | C-slot Type | PNP Output | IP67 Rated | by SICK
The Magnetic Cylinder Sensor is designed for precise position sensing in industrial automation, featuring a C-slot design for embedded mounting and a PNP switching output. With a high switching frequency of 1,000 Hz and an IP67 rated enclosure, it ensures reliable performance in demanding environments, making it ideal for pneumatic and hydraulic cylinder monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 50 mA
- Switching frequency: 1,000 Hz
- Output function: Normally Open (NO)
- Switching output: PNP
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Response sensitivity: 1.7 mT
- Overrun distance: 2 mm
- Hysteresis: ≤ 0.4 mT
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Ex area category: 3G, 3D
- Device labeling: II 3G Ex ec IIC T4 Gc X, II 3D Ex tc IIIC T 135°C Dc X
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: –25 °C to +55 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with plug M8, 3-pin, 0.5 m length
- Material: Plastic housing, PUR cable
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type for embedded mounting
- PNP switching output with NO function
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide supply voltage range from 10 V DC to 30 V DC
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper mounting and wiring according to manufacturer guidelines.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise position detection
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Low power consumption of 8 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZC2-1V7PS-FRX Magnetic Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
