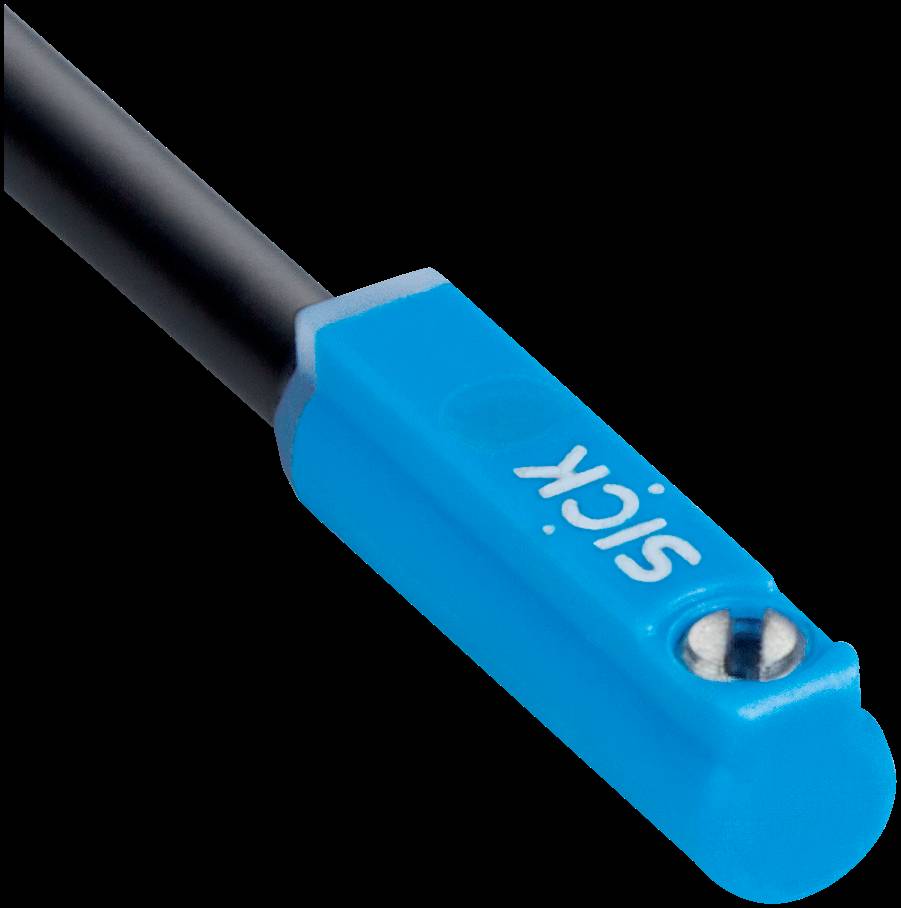

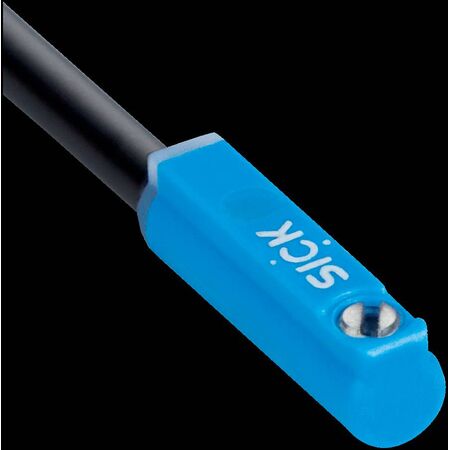

Magnetic Cylinder Sensor MZCS | IP67 Rated | 15mm Compact Design | PNP Output | by SICK
The Magnetic Cylinder Sensor MZCS is designed for precise cylinder position detection in compact pneumatic applications. With a very short housing of just 15mm and an IP67 enclosure rating, it ensures reliable performance in challenging environments. Ideal for automotive and machine building industries, this sensor features slide-in mounting for easy installation and an LED indicator for output state display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Cylinder Sensor MZCS | IP67 Rated | 15mm Compact Design | PNP Output | by SICK
Brand: SICK
SKU: 1142923
Alternatively Known As: Magnetic Cylinder Sensor, Pneumatic Cylinder Position Sensor, Compact Cylinder Sensor, C-slot Cylinder Sensor
Technical Specifications
- Switching output: PNP
- Connection type: Cable, 3-wire, stripped
- Cable length: 3 m
- Housing length: 15 mm
- Enclosure rating: IP67
- Dimensions (H x L x W): 15mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Very short housing (15 mm) suitable for miniature cylinders and actuators
- Compatible with common C-slots from SMC, Schunk, PHD, and Bimba
- Slide-in mounting for easy installation
- Short, precise switching point ideal for short stroke applications
- LED indicator for output state display
- Enclosure rating IP67 for protection against dust and water
- Available in PNP/NPN and DC 2-wire versions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and secure mounting in C-slot actuators.
Applications
- Automotive industry for precise cylinder position detection
- Machine building for compact actuator monitoring
- Materials industry for reliable pneumatic cylinder sensing
- Consumer goods and electronics sectors for miniature cylinder applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compact design reduces material usage and waste
- Durable IP67 housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MZCS Magnetic Cylinder Sensor is available for immediate purchase, ideal for compact pneumatic cylinder position detection in industrial applications.
