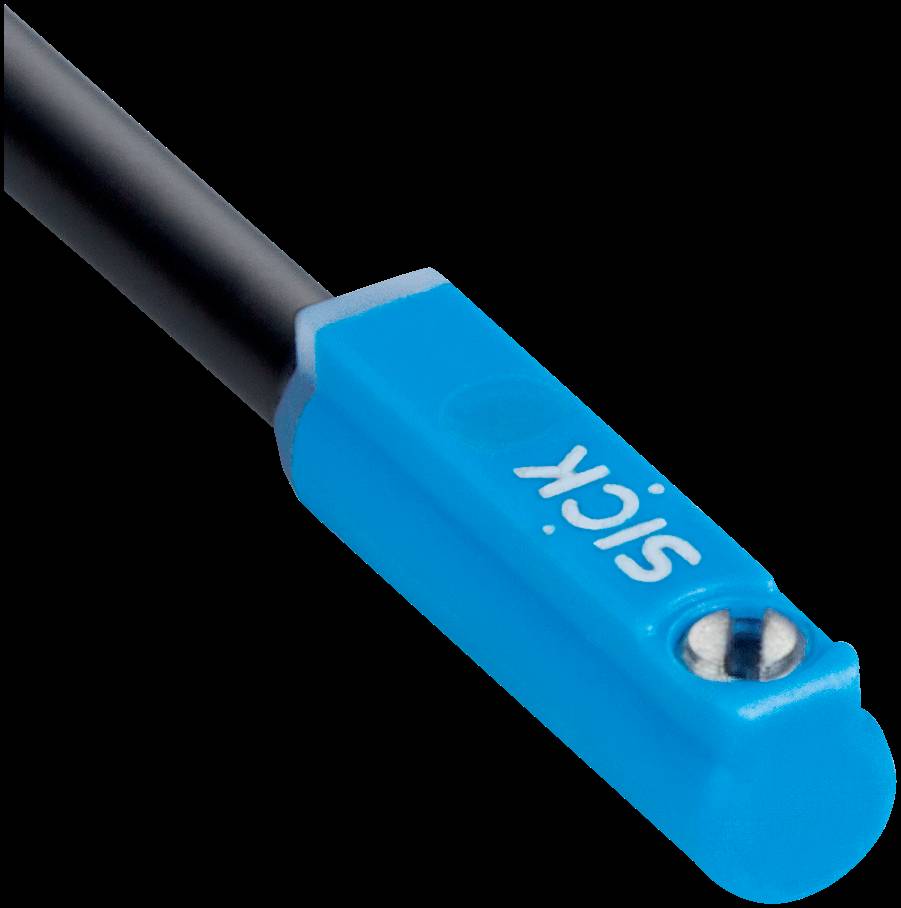

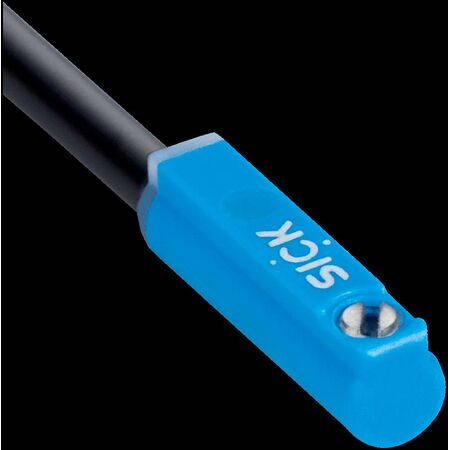

Magnetic Cylinder Sensor MZCS | IP67 Rated | 15mm Compact Design | NPN Output | by SICK
The Magnetic Cylinder Sensor MZCS is designed for precise position detection in compact pneumatic cylinders and actuators. With a very short housing of just 15mm and an IP67 enclosure rating, it ensures reliable performance in various applications, including automotive and machine building. The LED output state indicator and slide-in mounting make installation quick and easy, making it ideal for professionals seeking efficiency and accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Cylinder Sensor MZCS | IP67 Rated | 15mm Compact Design | NPN Output | by SICK
Brand: SICK
SKU: 1142927
Alternatively Known As: Magnetic Cylinder Sensor, Pneumatic Cylinder Position Sensor, Compact Cylinder Sensor, End Position Sensor for Pneumatic Cylinders
Technical Specifications
- Switching output: NPN
- Connection type: Cable, 3-wire, stripped
- Length of cable: 3 m
- Enclosure rating: IP67
- Housing length: 15 mm
- LED output state indicator
- Available in PNP/NPN and DC 2-wire versions
- Dimensions (H x L x W): 15mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Very short housing (15 mm) suitable for miniature cylinders and actuators
- Compatible with common C-slots from SMC, Schunk, PHD, and Bimba
- Slide-in mounting for easy installation
- Short, precise switching point ideal for short stroke applications
- LED indicator for output state display
- Enclosure rating IP67 for protection against dust and water
- Available in PNP/NPN and DC 2-wire versions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor mounting and electrical connection.
Applications
- Automotive industry for precise cylinder position detection
- Machine building for pneumatic actuator monitoring
- Materials industry for compact actuator integration
- Consumer goods and electronics sectors requiring reliable position sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compact design reduces material usage and waste
- Durable IP67 rated housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZCS Magnetic Cylinder Sensor is available for immediate purchase, ideal for use in compact pneumatic cylinders and actuators requiring precise position detection.
