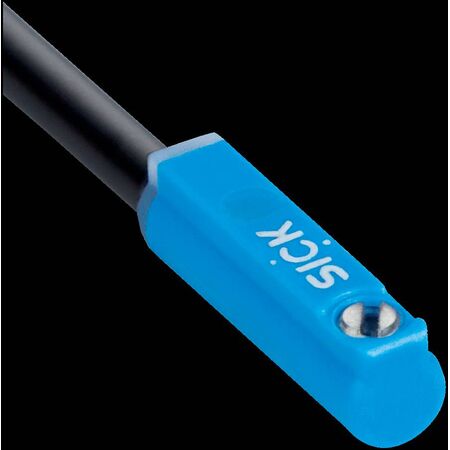

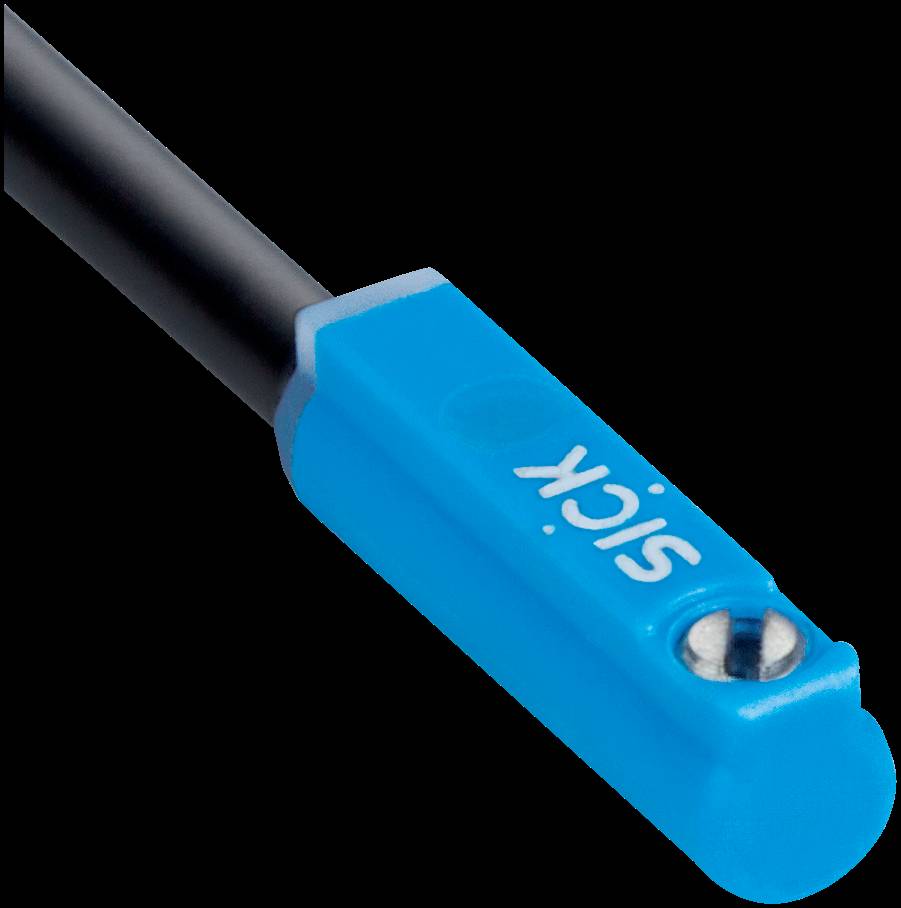

Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | LED Output Indicator | by SICK
The Magnetic Cylinder Sensor MZCS is designed for precise position detection in pneumatic cylinders and compact actuators. With a very short housing of just 15 mm and an IP67 enclosure rating, it’s perfect for applications in the automotive and machine building industries. The sensor features a slide-in mounting for easy installation and an LED output state indicator for enhanced usability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | LED Output Indicator | by SICK
Brand: SICK
SKU: 1142930
Alternatively Known As: Magnetic cylinder sensor, Pneumatic cylinder sensor, Compact position sensor, C-slot cylinder sensor
Technical Specifications
- Housing length: 15 mm
- Connection type: Cable, 2-wire, stripped
- Cable length: 0.5 m
- Switching output: PNP/NPN and DC 2-wire versions available
- Enclosure rating: IP67
- LED output state indicator
- Dimensions (H x L x W): 15mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Very short housing (15 mm) suitable for miniature cylinders and actuators
- Compatible with common C-slots from SMC, Schunk, PHD, and Bimba
- Slide-in mounting for easy installation
- Short, precise switching point ideal for short stroke applications
- LED indicator for output state display
- Enclosure rating IP67 for protection against dust and water
- Available in PNP/NPN and DC 2-wire versions
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper sensor setup and reliable operation.
Applications
- Automotive industry
- Machine building
- Materials industry
- Consumer goods and electronics sectors
- Position detection in pneumatic cylinders and compact actuators
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compact design reduces material usage and waste
- Durable IP67 rated housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK MZCS Magnetic Cylinder Sensor is available for immediate purchase, ideal for use in pneumatic cylinders and compact actuators in various industrial applications.
