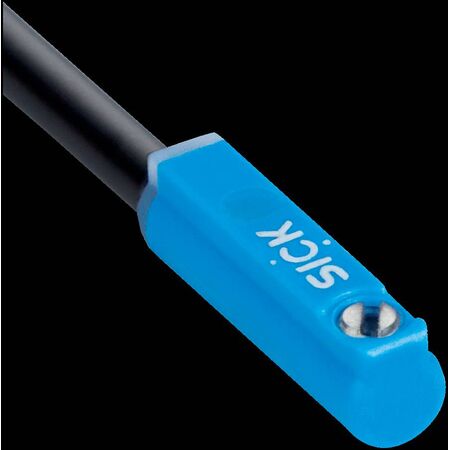

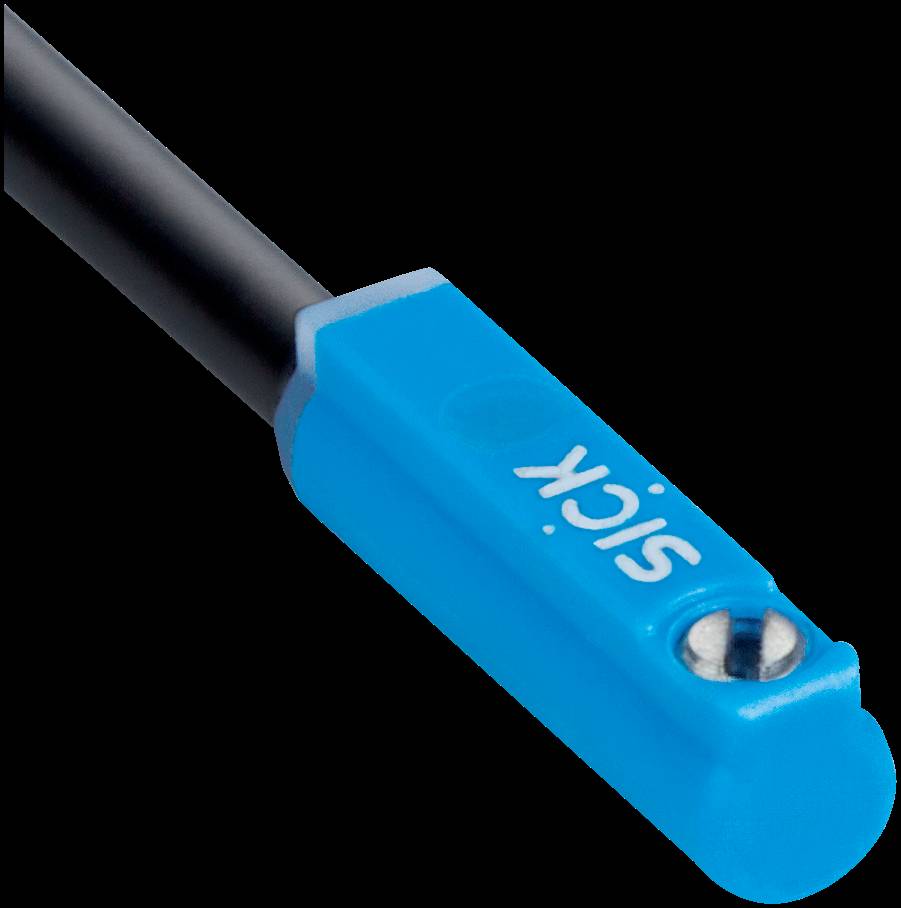

Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | LED Indicator | by SICK
The Magnetic Cylinder Sensor MZCS is designed for precise position detection in compact pneumatic cylinders and actuators. With a very short housing of just 15 mm and an IP67 enclosure rating, it ensures reliable operation in various environments. Ideal for automotive and machine building applications, this sensor features a slide-in mounting for easy installation and an LED output state indicator for enhanced visibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | LED Indicator | by SICK
Brand: SICK
SKU: 1142931
Alternatively Known As: Magnetic Cylinder Sensor, Pneumatic Cylinder Position Sensor, Compact Cylinder Sensor, C-slot Cylinder Sensor
Technical Specifications
- Housing length: 15 mm
- Connection type: Cable, 2-wire, stripped
- Cable length: 3 m
- Switching output: PNP/NPN and DC 2-wire versions available
- Enclosure rating: IP67
- LED output state indicator
- Dimensions (H x L x W): 15mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Very short housing (15 mm) suitable for miniature cylinders and actuators
- Compatible with common C-slots from SMC, Schunk, PHD, and Bimba
- Slide-in mounting for easy installation
- Short, precise switching point ideal for short stroke applications
- LED indicator for output state display
- Enclosure rating IP67 for protection against dust and water
- Available in PNP/NPN and DC 2-wire versions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor setup and reliable operation.
Applications
- Automotive industry for precise cylinder position detection
- Machine building for compact actuator monitoring
- Materials industry for reliable pneumatic cylinder sensing
- Consumer goods and electronics sectors for compact actuator integration
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compact design reduces material usage and waste
- Durable IP67 rated housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK MZCS Magnetic Cylinder Sensor is available for immediate purchase, ideal for use in compact pneumatic cylinders and actuators requiring precise position detection.
