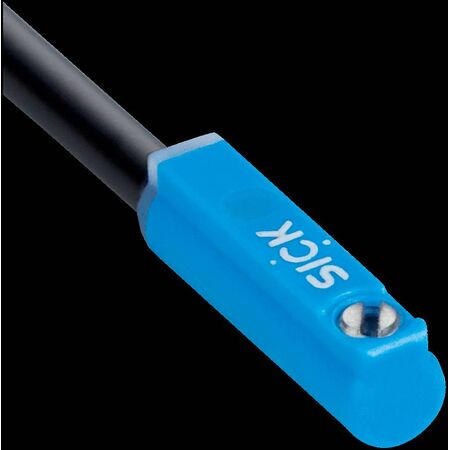

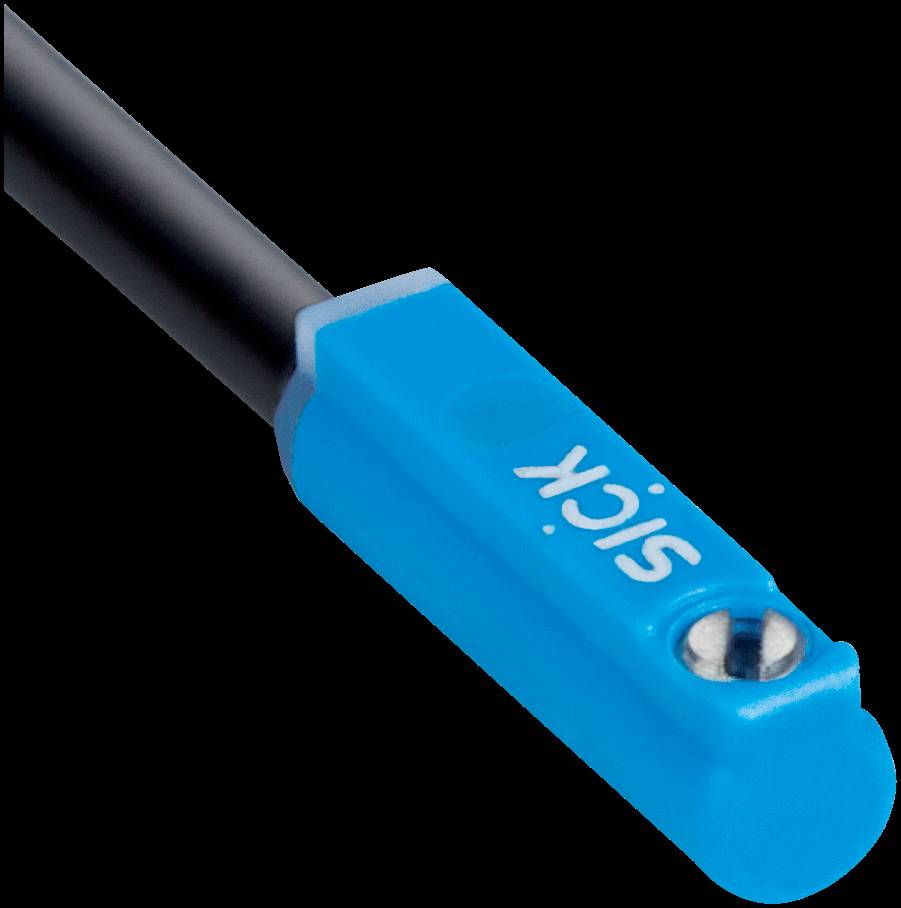

Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | LED Output Indicator | by SICK
The MZCS Magnetic Cylinder Sensor is designed for precise position detection in compact pneumatic cylinders and actuators. With a very short housing of just 15 mm and an IP67 enclosure rating, it ensures reliable performance in various applications, including automotive and machine building. The sensor features a slide-in mounting for easy installation and an LED output state indicator for enhanced usability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | LED Output Indicator | by SICK
Brand: SICK
SKU: 1142932
Alternatively Known As: Magnetic Cylinder Sensor, Pneumatic Cylinder Position Sensor, Compact Cylinder Sensor, MZCS Sensor
Technical Specifications
- Housing length: 15 mm
- Connection type: Cable with plug M8, 3-pin, with knurled nut
- Cable length: 0.5 m
- Switching output: PNP/NPN and DC 2-wire versions available
- Enclosure rating: IP67
- LED output state indicator
- Dimensions (H x L x W): 15mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Very short housing (15 mm) suitable for miniature cylinders and actuators
- Compatible with common C-slots from SMC, Schunk, PHD, and Bimba
- Slide-in mounting for easy installation
- Short, precise switching point ideal for short stroke applications
- LED indicator for output state display
- Enclosure rating IP67 for protection against dust and water
- Available in PNP/NPN and DC 2-wire versions
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pneumatic cylinder sensors to ensure proper mounting and electrical connection.
Applications
- Automotive industry for precise cylinder position detection
- Machine building for compact actuator monitoring
- Materials industry for reliable pneumatic cylinder sensing
- Consumer goods and electronics sectors for compact actuator integration
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compact design reduces material usage and waste
- Durable IP67 rated housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZCS Magnetic Cylinder Sensor is available for immediate purchase, ideal for use in compact pneumatic cylinders and actuators across various industries.
