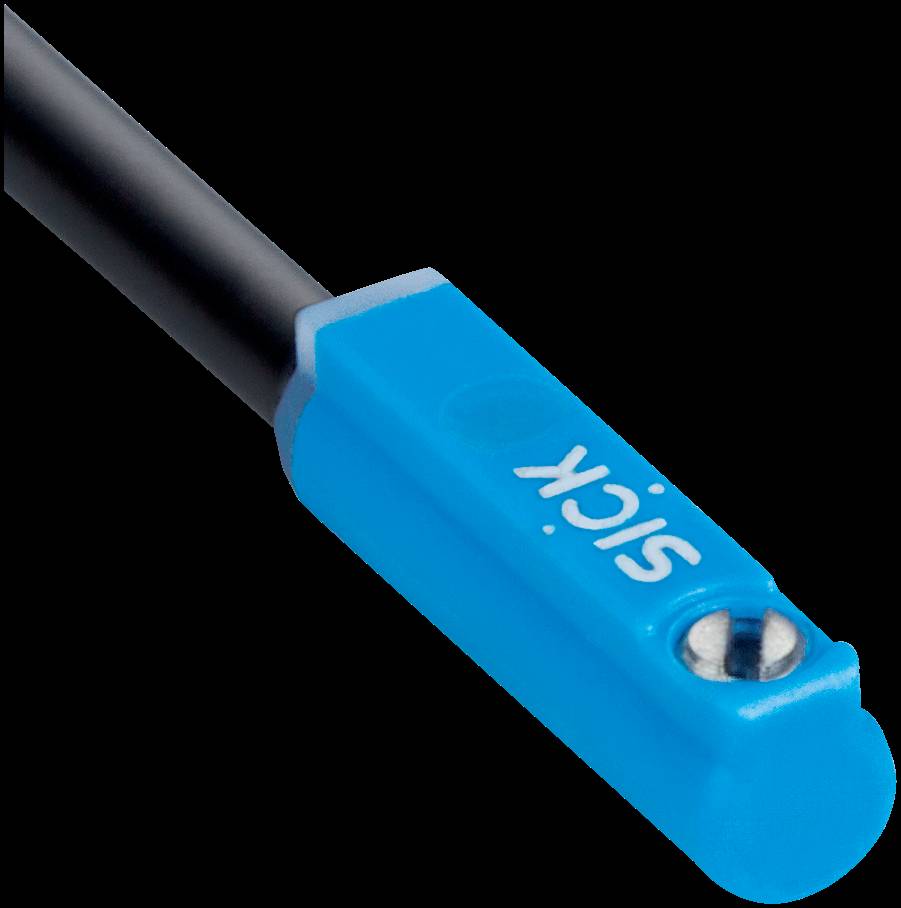

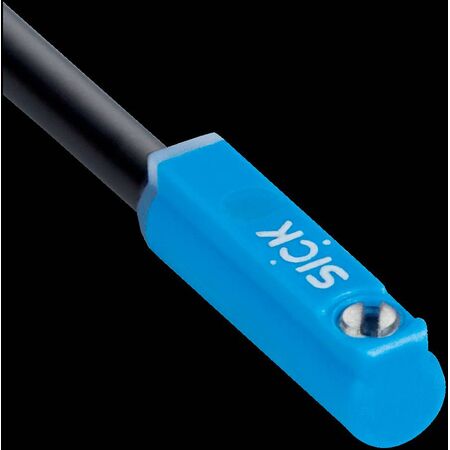

Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | NPN Output | by SICK
The Magnetic Cylinder Sensor MZCS is designed for precise cylinder position detection in compact pneumatic applications. With a very short housing of just 15 mm and an IP67 enclosure rating, it ensures reliable performance in challenging environments. Ideal for the automotive and machine building industries, this sensor features a slide-in mounting for easy installation and an LED indicator for output state display.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Magnetic Cylinder Sensor MZCS | IP67 Rated | Compact Design | NPN Output | by SICK
Brand: SICK
SKU: 1142929
Alternatively Known As: Magnetic Cylinder Sensor, Pneumatic Cylinder Position Sensor, Compact Cylinder Sensor, MZCS Sensor
Technical Specifications
- Switching output: NPN
- Connection type: Cable with connector M12, 3-pin
- Cable length: 0.5 m
- Housing length: 15 mm
- Enclosure rating: IP67
- Dimensions (H x L x W): 15mm x 15mm x 15mm
- Weight: 0.05 kg
Key Features
- Very short housing (15 mm) suitable for miniature cylinders and actuators
- Compatible with common C-slots from SMC, Schunk, PHD, and Bimba
- Slide-in mounting for easy installation
- Short, precise switching point ideal for short stroke applications
- LED indicator for output state display
- Enclosure rating IP67 for protection against dust and water
- Available in PNP/NPN and DC 2-wire versions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and secure mounting in C-slot actuators.
Applications
- Automotive industry for precise cylinder position detection
- Machine building for compact actuator sensing
- Materials industry for reliable pneumatic cylinder monitoring
- Consumer goods and electronics sectors for compact actuator integration
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Compact design reduces material usage and waste
- Durable IP67 rated housing extends product lifespan, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; typically 1-2 years against defects.
Available Now
The SICK MZCS Magnetic Cylinder Sensor is available for immediate purchase, ideal for compact pneumatic cylinder position detection in industrial applications.
